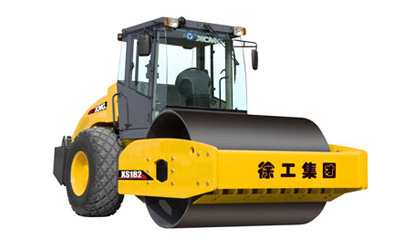

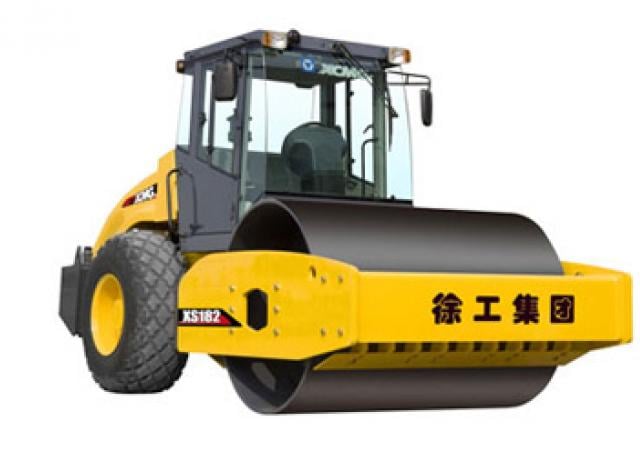

XCMG XS182 Specifications & Technical Data (2017-2021)

Technical specs - XS182 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18 t

Travel speed: 10 km/h

Frequency: 33 Hz

Roller width: 2.13 m

Amplitude: 1.86 mm

Turning radius outside: 6.5 m

Statical line load: 53.9 kg/cm

Model series: XS

Engine manuf.: Cummins

Engine type: B5.9

Engine power: 132 kW

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: Yes

XCMG XS182 FAQ

When was the XCMG XS182 manufactured?

The XCMG XS182 was manufactured from 2017 to 2021.

How much does the XCMG XS182 weigh?

The XCMG XS182 weighs 18 tons.

What is the travel speed of the XCMG XS182 single-drum roller?

The XCMG XS182 single-drum roller has a travel speed of 10 km/h.

What is the turning radius of the XCMG XS182 single-drum roller?

The XCMG XS182 has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the XCMG XS182 single-drum roller?

The XCMG XS182 operates at a frequency of 33 Hz, has an amplitude of 1.86 mm, and a statical line load of 53.9 kg/cm.

What is the roller width of the XCMG XS182 single-drum roller?

The XCMG XS182 single-drum roller has a roller width of 2.13 meters.

How much is a XCMG XS182 Single-drum Roller (2017u20132021) worth?

The residual value of the XCMG XS182 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
