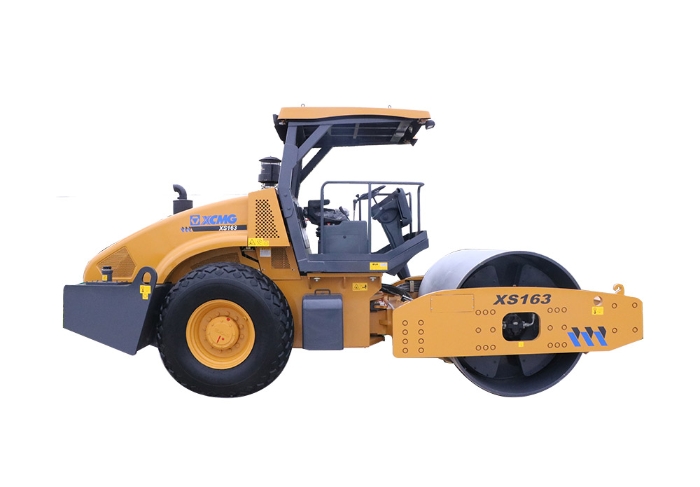

XS163 XCMG XS163 Specifications & Technical Data (2025—2026)
.jpg)
Visit XCMG live at
Technical specs - XS163 XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16 t
- Transport length
- 6.2 m
- Transport width
- 2.3 m
- Transport height
- 3.2 m
- Travel speed
- 11.5 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Model series
- XS
- Engine manuf.
- Cummins
- Engine type
- k.A.
- Engine power
- 125 kW
- Revolutions at max torque
- 2200 rpm
- Emission level
- EU II
More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
