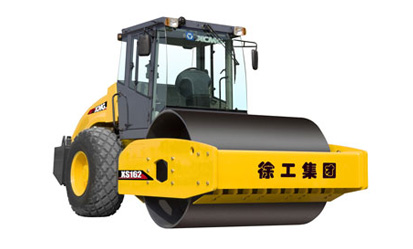

XCMG XS162 Specifications & Technical Data (2017-2021)

Technical specs - XS162 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Travel speed: 12 km/h

Frequency: 35 Hz

Roller width: 2.13 m

Amplitude: 1.86 mm

Turning radius outside: 6.415 m

Statical line load: 47.3 kg/cm

Model series: XS

Engine manuf.: Cummins

Engine type: B5.9

Engine power: 125 kW

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: Yes

XCMG XS162 FAQ

When was the XCMG XS162 manufactured?

The XCMG XS162 was manufactured from 2017 to 2021.

How much does the XCMG XS162 single-drum roller weigh?

The XCMG XS162 single-drum roller weighs 16 tons.

What is the travel speed of the XCMG XS162 single-drum roller?

The XCMG XS162 single-drum roller has a travel speed of 12 km/h.

What is the turning radius of the XCMG XS162 single-drum roller?

The XCMG XS162 single-drum roller has an outside turning radius of 6.415 meters.

What are the compaction capabilities of the XCMG XS162 single-drum roller?

The XCMG XS162 operates at a frequency of 35 Hz, has an amplitude of 1.86 mm, and a statical line load of 47.3 kg/cm.

What is the roller width of the XCMG XS162 single-drum roller?

The XCMG XS162 has a roller width of 2.13 meters.

How much is a XCMG XS162 Single-drum Roller (2017u20132021) worth?

The residual value of the XCMG XS162 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
