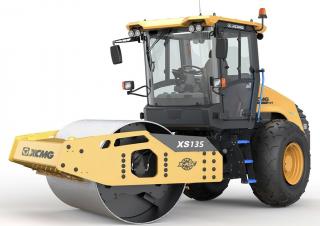

XS135 XCMG XS135 Specifications & Technical Data (2021—2026)
Visit XCMG live at
Technical specs - XS135 XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13 t
- Transport length
- 5.99 m
- Transport width
- 2.3 m
- Transport height
- 2.99 m
- Travel speed
- 11 km/h
- Frequency
- 30/35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.533 m
- Turning radius inside
- 4.22 m
- Statical line load
- 38 kg/cm
- Centrifugal force
- 265 kN
- Model series
- XS
- Engine manuf.
- Cummins
- Engine type
- F3.8
- Engine power
- 115 kW
- Displacement
- 3.8 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- EU V
More technical details, like: vibration, drive, amplitude, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
