XS125 XCMG XS125 Specifications & Technical Data (2025—2026)

Weight: 13.25t – Travel speed: 11.85km/h – Frequency: 30/35Hz – Roller width: 2.13m – Model series: XS – Engine manuf.: Cummins

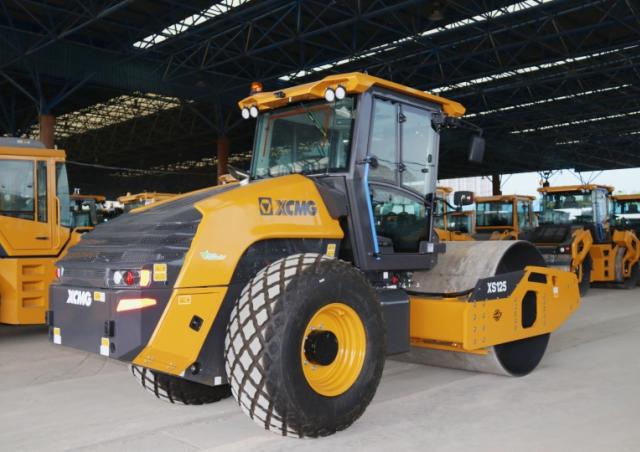

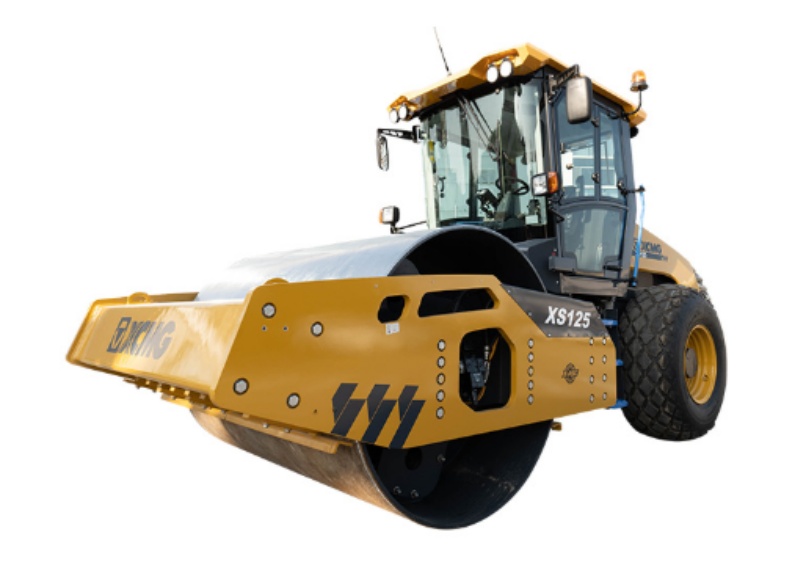

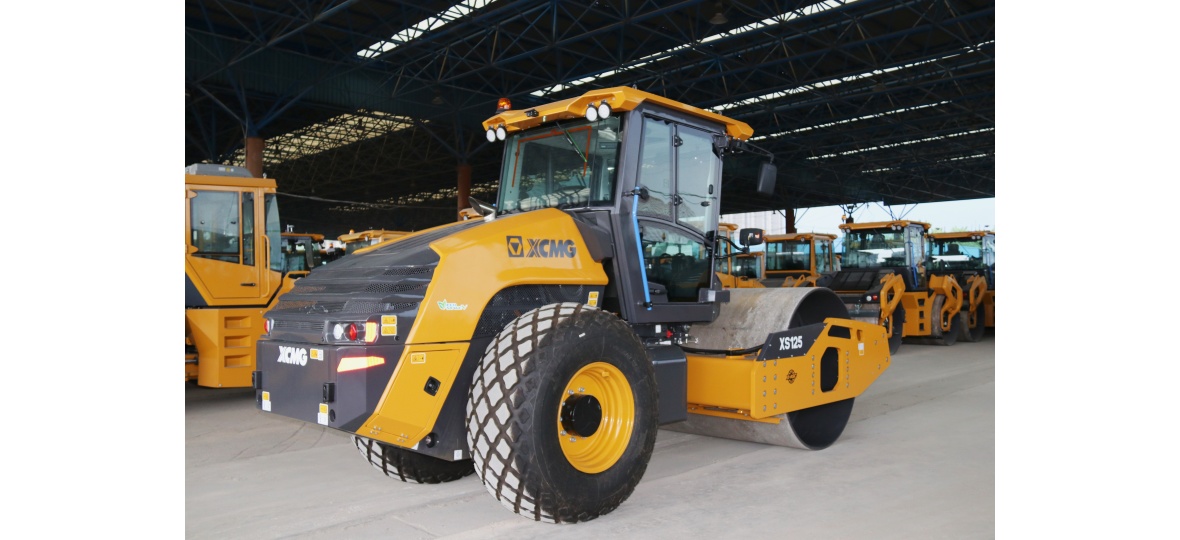

Rollers Single-drum Rollers XCMG XS125
Rollers Single-drum Rollers XCMG XS125
Rollers Single-drum Rollers XCMG XS125
Rollers Single-drum Rollers XCMG XS125

Visit XCMG live at

Technical specs - XS125 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.25 t
Travel speed
11.85 km/h
Frequency
30/35 Hz
Roller width
2.13 m
Model series
XS
Engine manuf.
Cummins
Engine type
F3.8
Engine power
115 kW
Displacement
3.8 l
Revolutions at max torque
2200 rpm
Emission level
EU V

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh...

More technical details, like: transport length, transport width, transport height, vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
