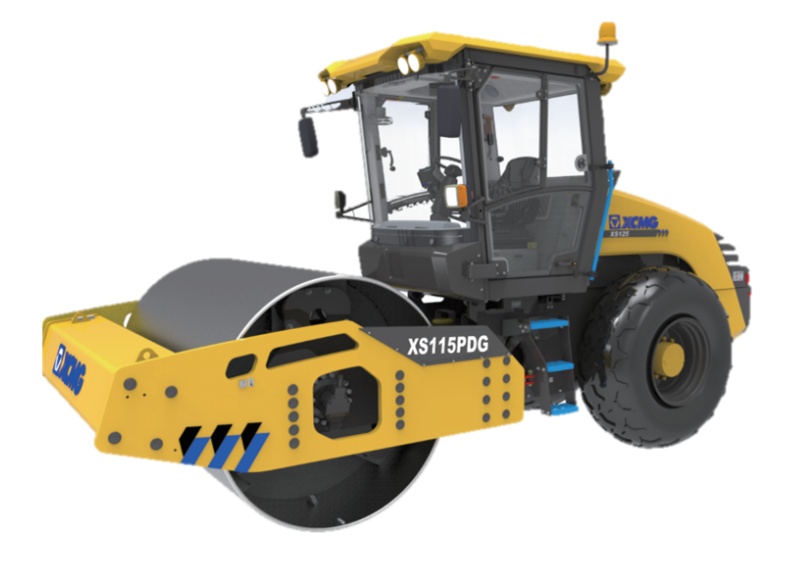

XS115PDG XCMG XS115PDG Specifications & Technical Data (2025—2026)

Weight: 11.5t – Transport length: 5.99m – Transport width: 2.3m – Transport height: 2.99m – Travel speed: 11.85km/h – Frequency: 30/35Hz

Rollers Single-drum Rollers XCMG XS115PDG

Visit XCMG live at

Technical specs - XS115PDG XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.5 t
Transport length
5.99 m
Transport width
2.3 m
Transport height
2.99 m
Travel speed
11.85 km/h
Frequency
30/35 Hz
Roller width
2.13 m
Model series
XS
Engine manuf.
Cummins
Engine type
F3.8
Engine power
115 kW
Displacement
3.8 l
Revolutions at max torque
2200 rpm
Emission level
EU V

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
