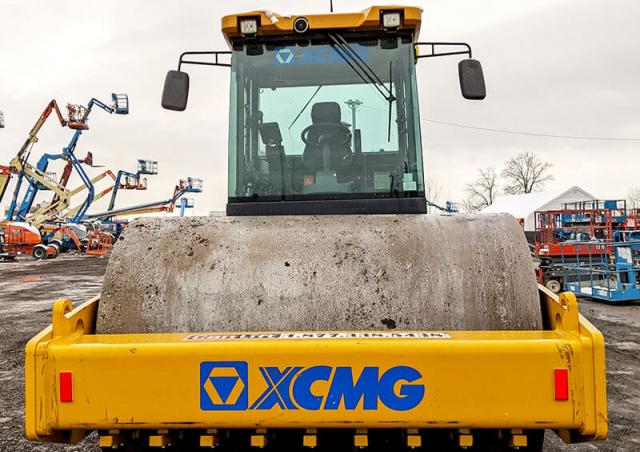

XCMG CV163U Specifications & Technical Data (2021-2025)

Technical specs - CV163U XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Transport length: 6.13 m

Transport width: 2.3 m

Transport height: 3.2 m

Travel speed: 11 km/h

Frequency: 33 Hz

Centrifugal force: 340 kN

Model series: CV

Engine manuf.: Cummins

Engine type: B4.5

Engine power: 129 kW

Emission level: Tier 4f

More technical details, like: vibration, drive, roller width, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: vibration, drive, roller width, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

XCMG CV163U FAQ

When was the XCMG CV163U manufactured?

The XCMG CV163U was first produced in 2021.

How much does the XCMG CV163U weigh?

The XCMG CV163U weighs 16 tons.

What are the transport dimensions of the XCMG CV163U single-drum roller?

The XCMG CV163U has a transport length of 6.13 meters, a transport width of 2.3 meters, and a transport height of 3.2 meters.

What is the travel speed of the XCMG CV163U single-drum roller?

The XCMG CV163U has a travel speed of 11 km/h.

What are the compaction capabilities of the XCMG CV163U single-drum roller?

The XCMG CV163U operates at a vibration frequency of 33 Hz and generates a centrifugal force of 340 kN for compaction.

How much is a XCMG CV163U Single-drum Roller (2021u20132025) worth?

The residual value of the XCMG CV163U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
