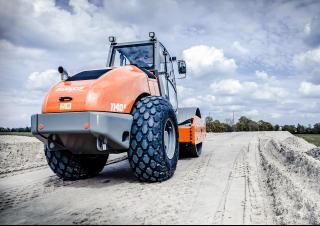

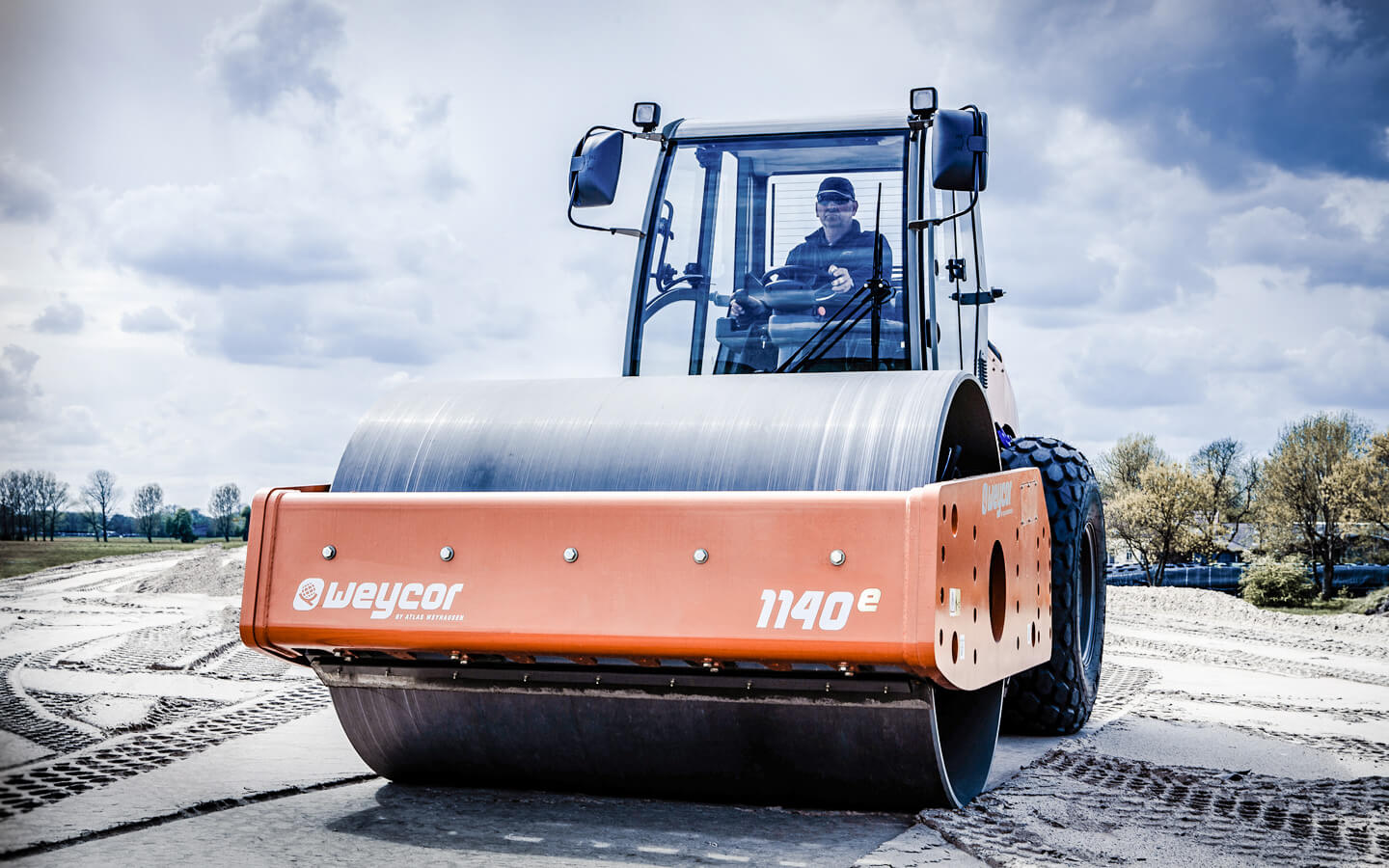

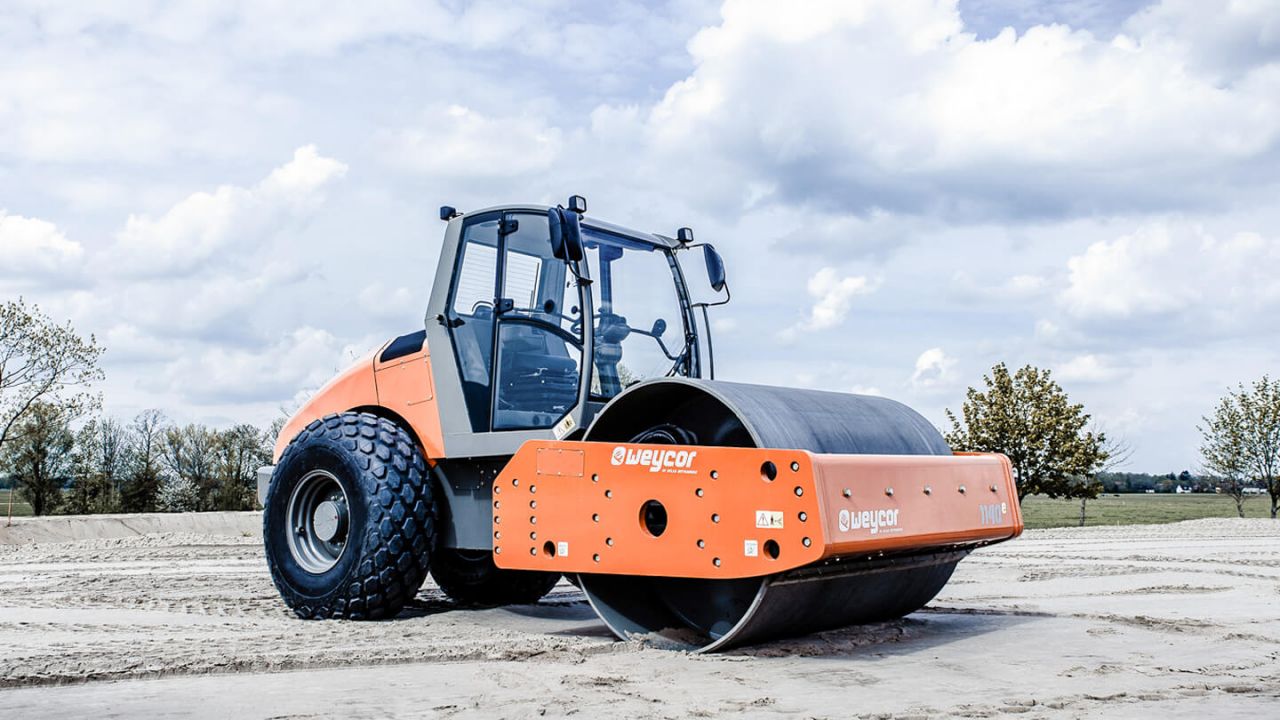

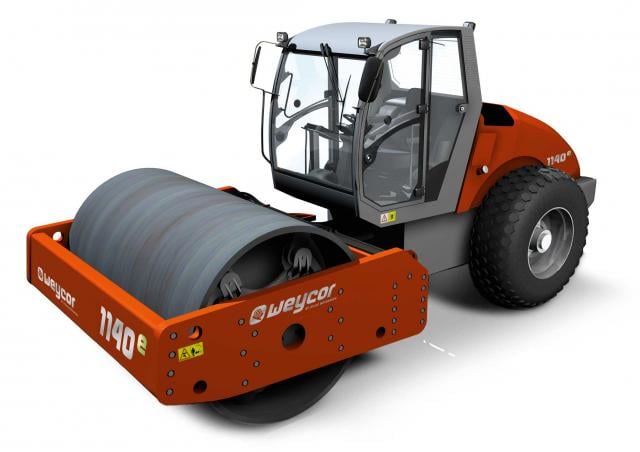

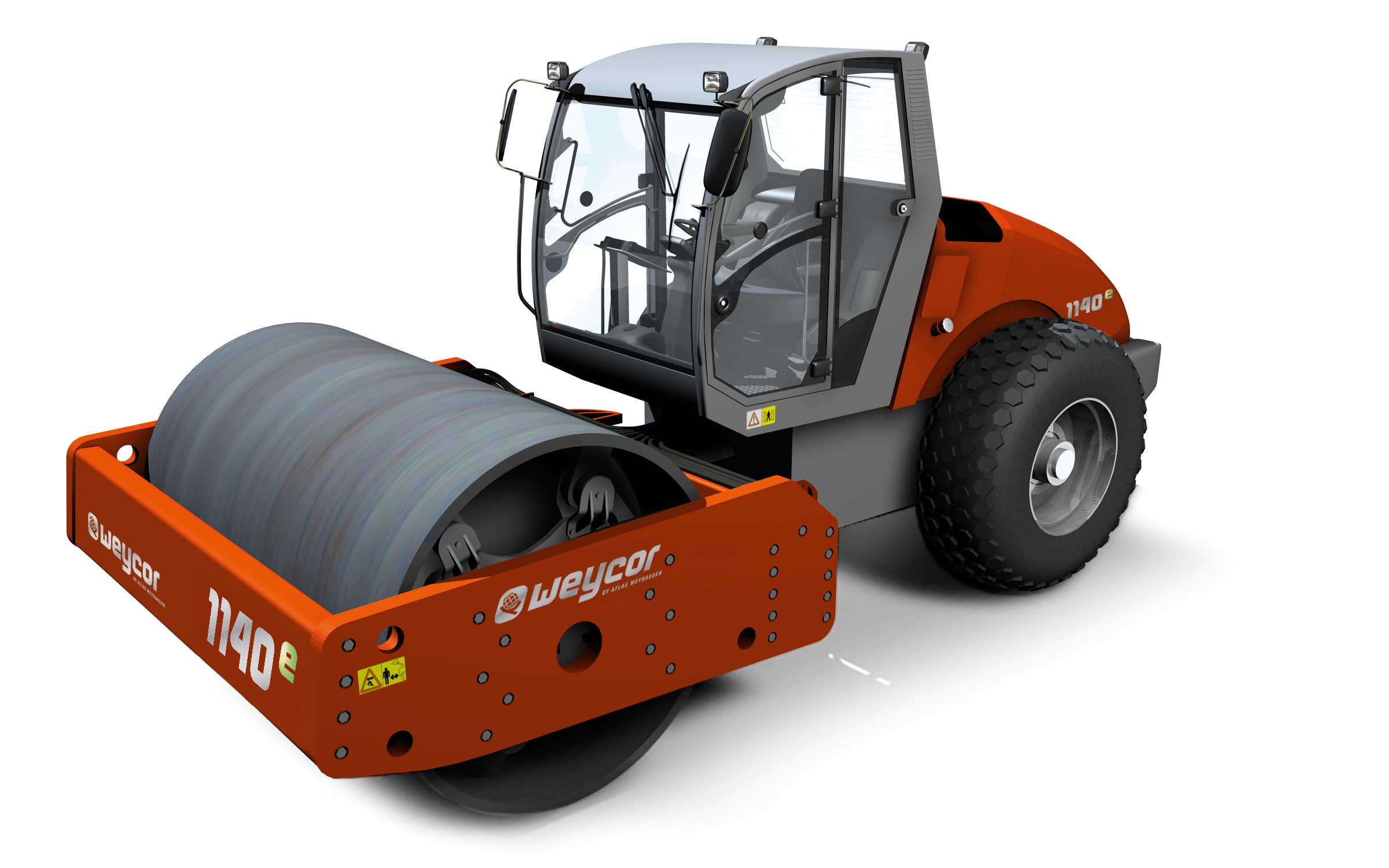

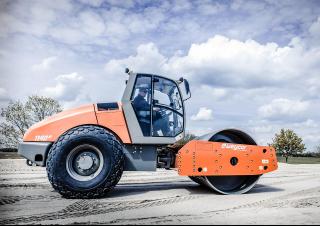

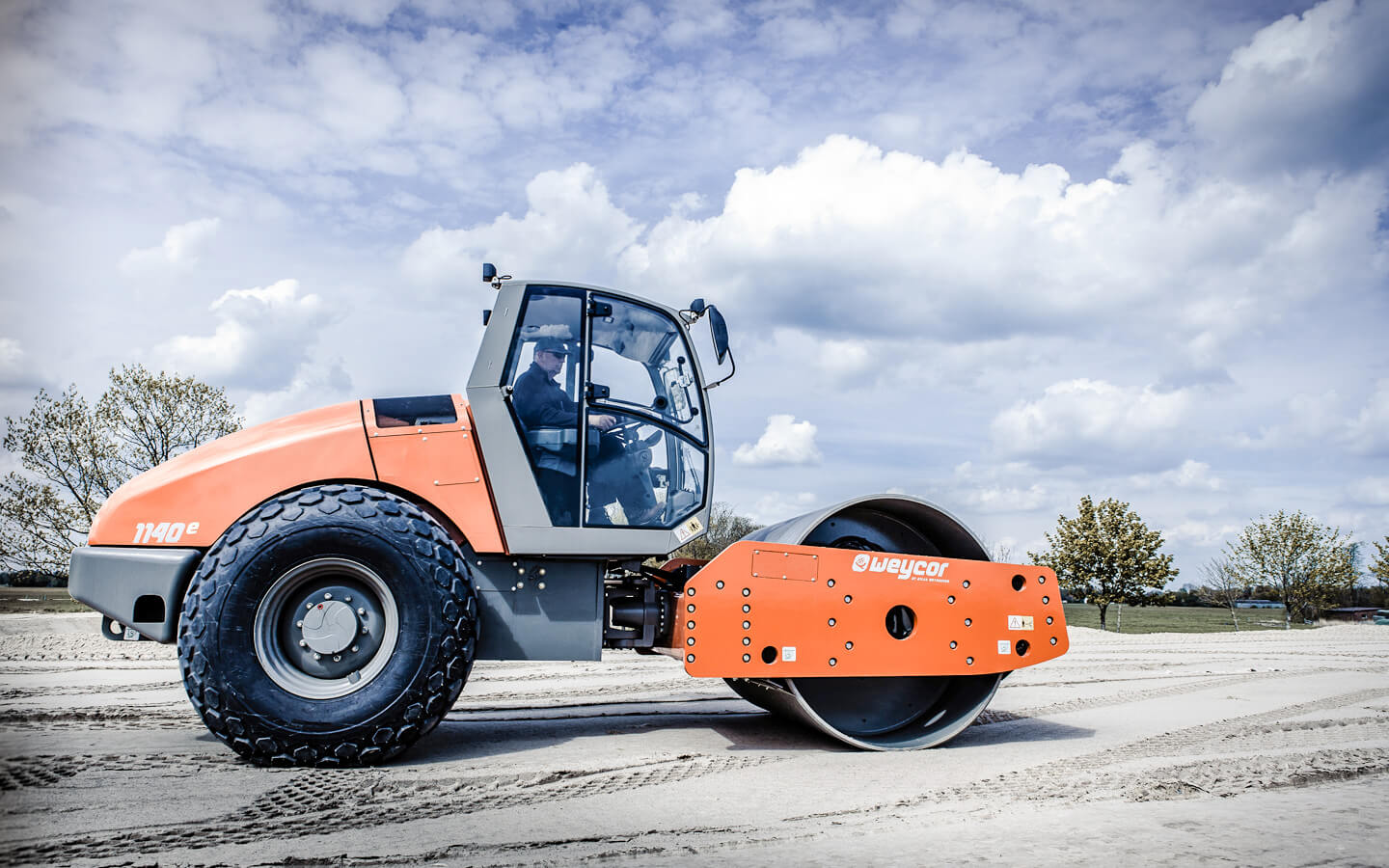

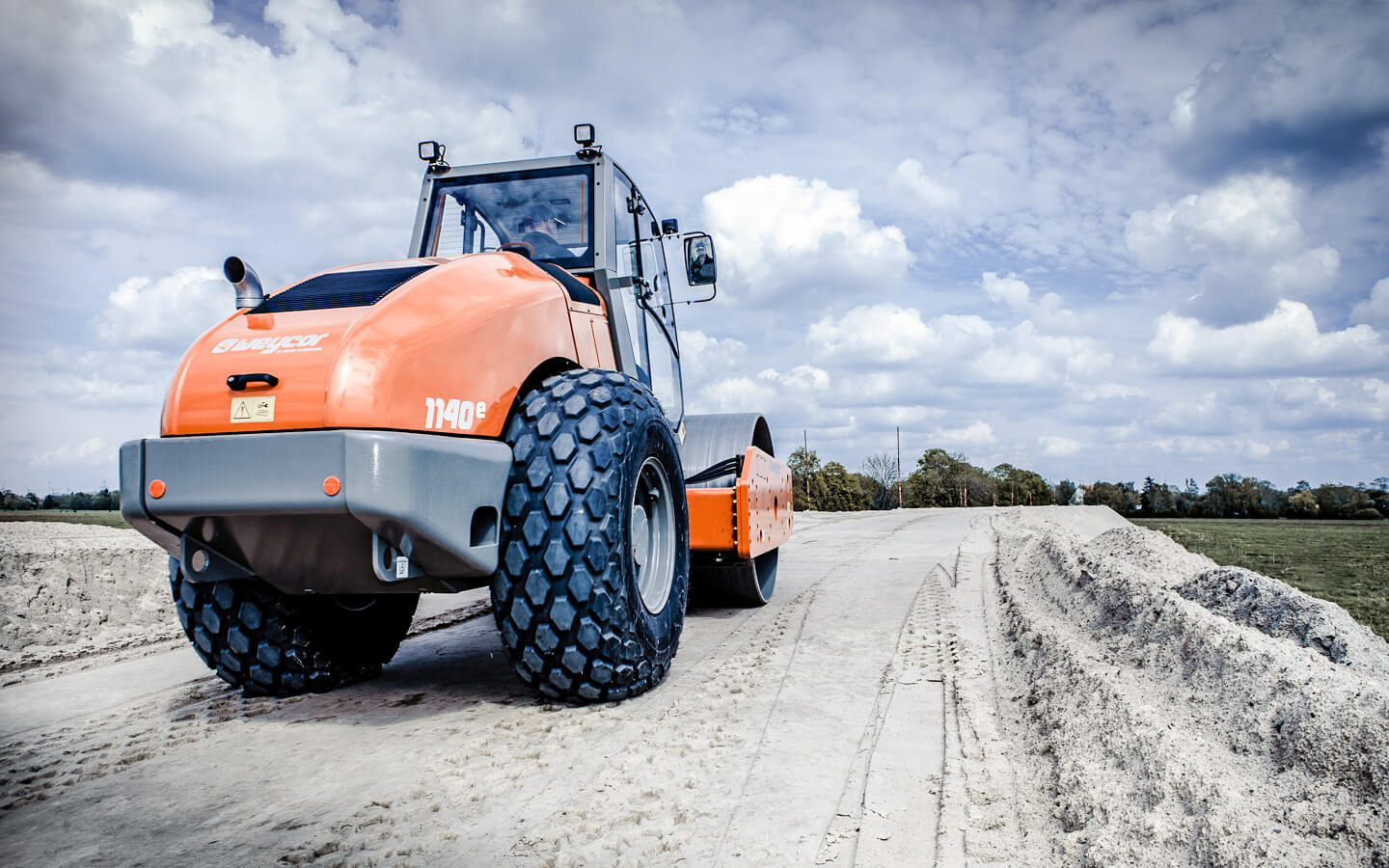

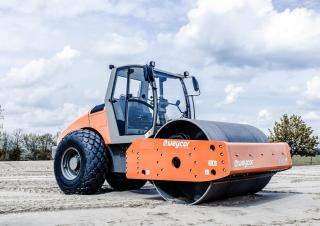

AW 1140 e weycor AW 1140 e Specifications & Technical Data (2016—2019)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit weycor live at
Technical specs - AW 1140 e weycor
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.9 t
- Transport length
- 5.76 m
- Transport width
- 2.27 m
- Transport height
- 2.92 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.5 km/h
- Frequency
- 40 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 7.015 m
- Statical line load
- 38 kg/cm
- Model series
- AW
- Engine manuf.
- Cummins
- Engine type
- QSF3.8
- Engine power
- 97 kW
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
