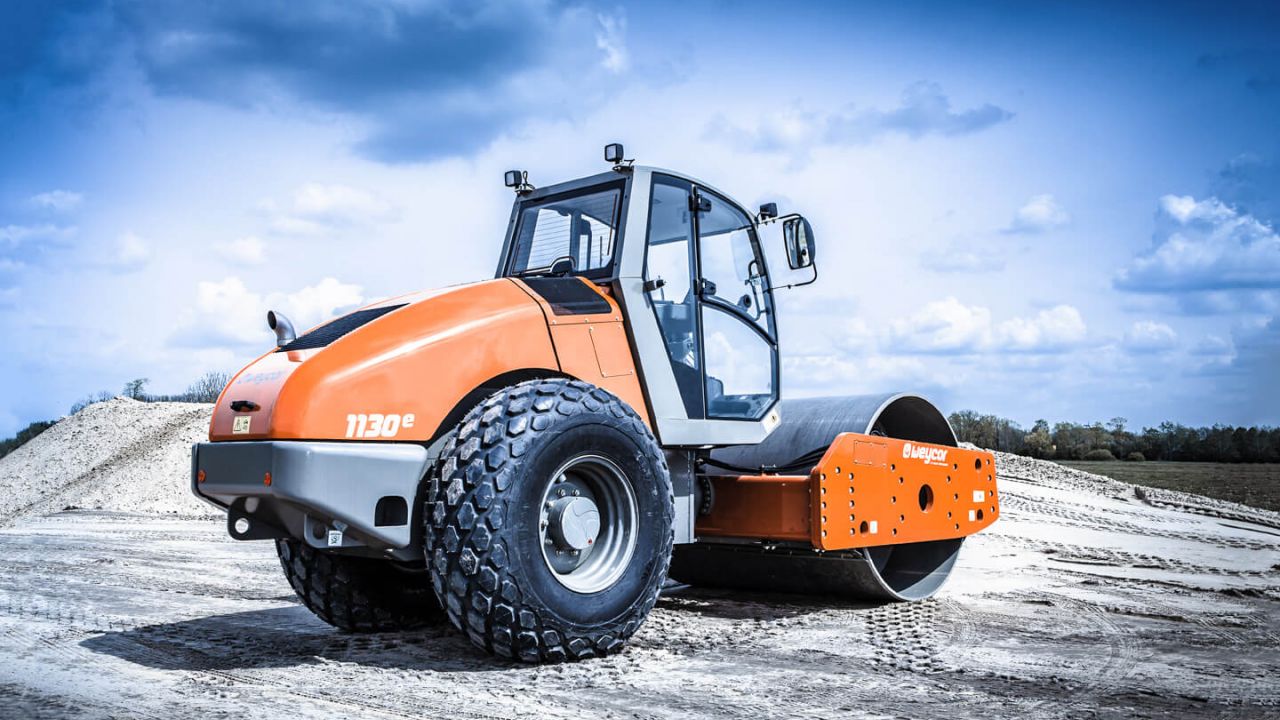

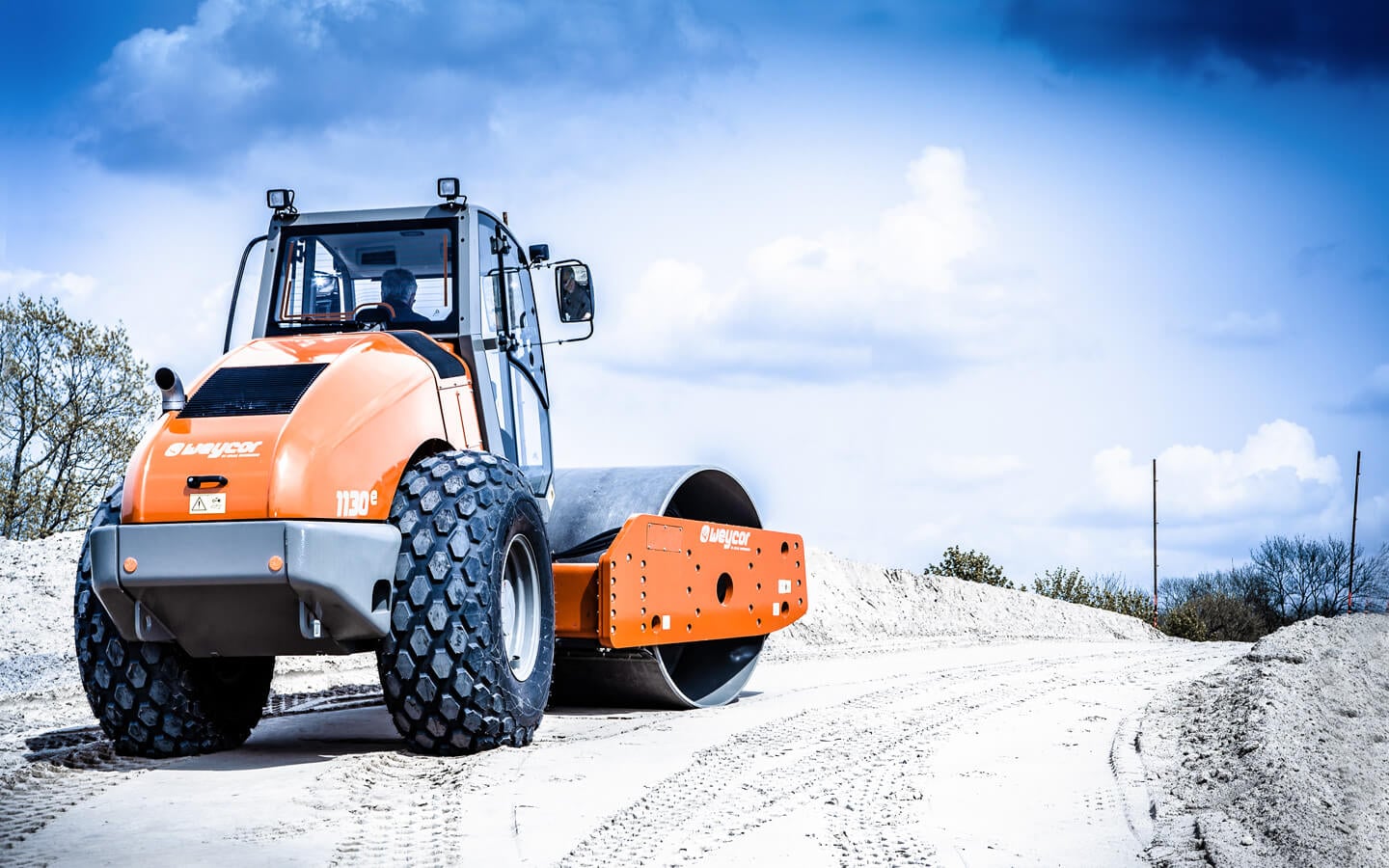

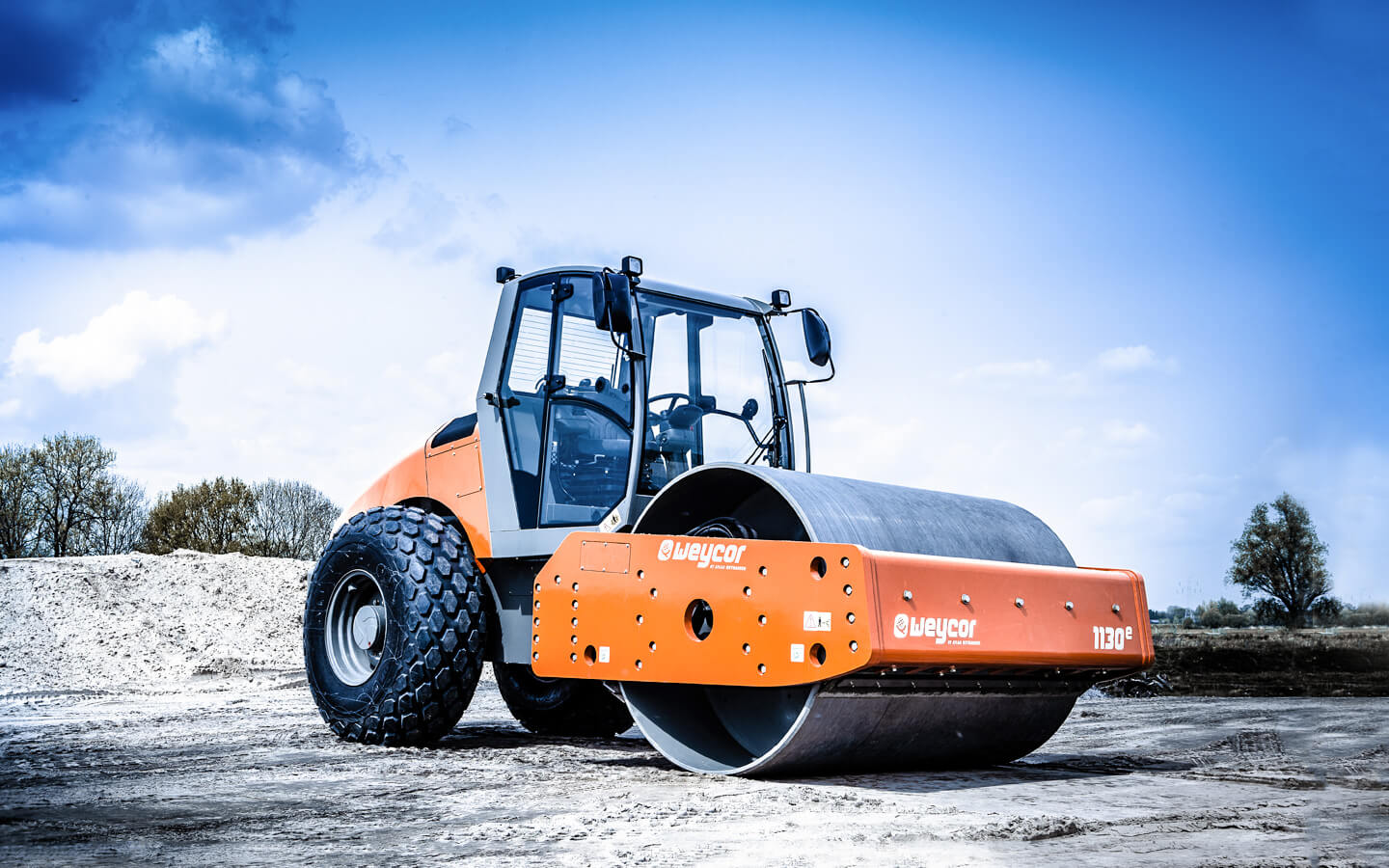

AW 1130 e weycor AW 1130 e Specifications & Technical Data (2016—2019)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit weycor live at
Technical specs - AW 1130 e weycor
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.9 t
- Transport length
- 5.76 m
- Transport width
- 2.27 m
- Transport height
- 2.92 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.5 km/h
- Frequency
- 38 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 7.015 m
- Statical line load
- 33.3 kg/cm
- Model series
- AW
- Engine manuf.
- Cummins
- Engine type
- QSF3.8
- Engine power
- 97 kW
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
weycor AW 1130 e FAQ
How much does the weycor AW 1130 e weigh?
What are the transport dimensions of the weycor AW 1130 e single-drum roller?
What is the travel speed of the weycor AW 1130 e?
What type of drive system does the weycor AW 1130 e use for its undercarriage?
What is the turning radius of the weycor AW 1130 e single-drum roller?
What are the compaction capabilities of the weycor AW 1130 e single-drum roller?
What are the roller specifications of the weycor AW 1130 e single-drum roller?
How much is a weycor AW 1130 e Single-drum Roller (2016u20132019) worth?
Events
Visit weycor live at
Machine inspection
Ask for inspection of your weycor AW 1130 e from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare weycor AW 1130 e with similar Single-drum Rollers
.jpg)

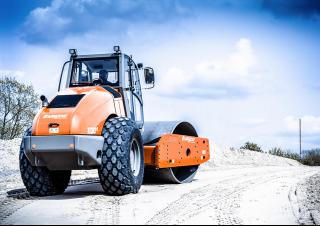

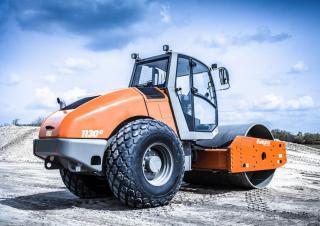

weycor AW 1130 e
