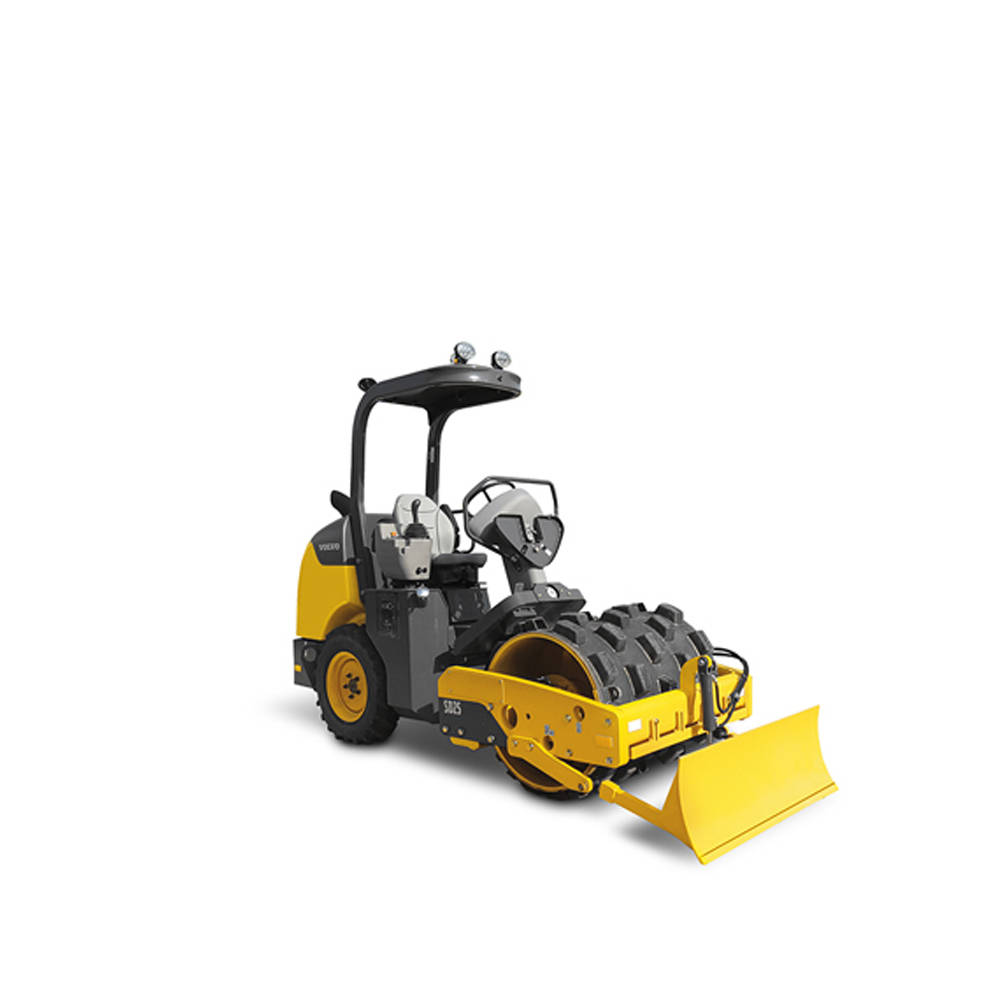

SD25 Volvo SD25 Specifications & Technical Data (2021—2023)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD25 Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.664 t
- Transport length
- 3.18 m
- Transport width
- 1.22 m
- Transport height
- 2.25 m
- Travel speed
- 7.4 km/h
- Frequency
- 37 Hz
- Roller width
- 1.05 m
- Rollers Ø
- 0.792 m
- Amplitude
- 1.4 mm
- Centrifugal force
- 56 kN
- Model series
- SD
- Engine manuf.
- Kubota
- Engine type
- V2203-M
- Engine power
- 31.4 kW
- Emission level
- Tier 4
More technical details, like: vibration, drive, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Volvo SD25 FAQ
How much does the Volvo SD25 weigh?
What are the transport dimensions of the Volvo SD25 single-drum roller?
What is the travel speed of the Volvo SD25 single-drum roller?
What are the compaction capabilities of the Volvo SD25 single-drum roller?
What are the roller specifications of the Volvo SD25 single-drum roller?
How much is a Volvo SD25 Single-drum Roller (2021u20132023) worth?
