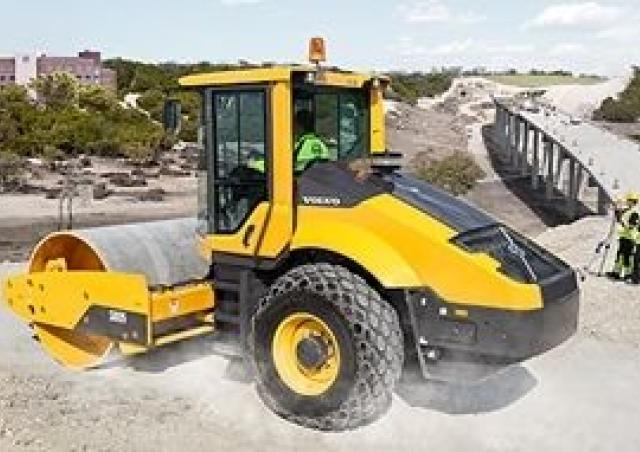

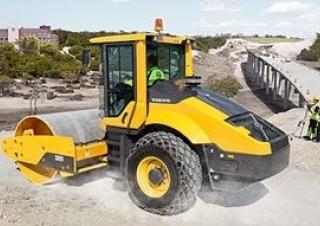

SD135 Volvo SD135 Specifications & Technical Data (2013—2016)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD135 Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.09 t
- Transport length
- 6.07 m
- Transport width
- 2.29 m
- Transport height
- 3.09 m
- Travel speed
- 14.1 km/h
- Frequency
- 33.8 Hz
- Roller width
- 2.13 m
- Amplitude
- 2.03 mm
- Centrifugal force
- 293 kN
- Engine manuf.
- Volvo
- Engine type
- D4
- Engine power
- 110 kW
- No. of cylinders
- 4
- Emission level
- Tier IVi
More technical details, like: vibration, drive, rollers Ø, turning radius outside, turning radius inside, statical line load, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
