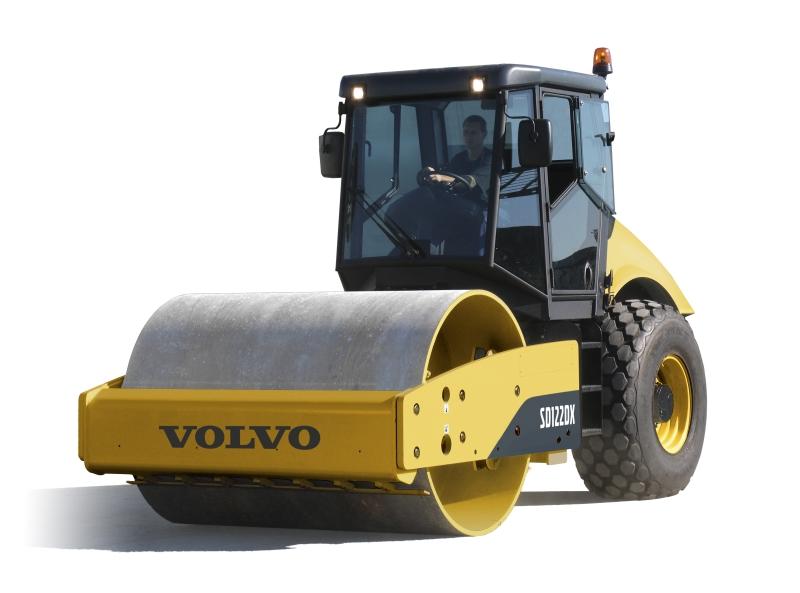

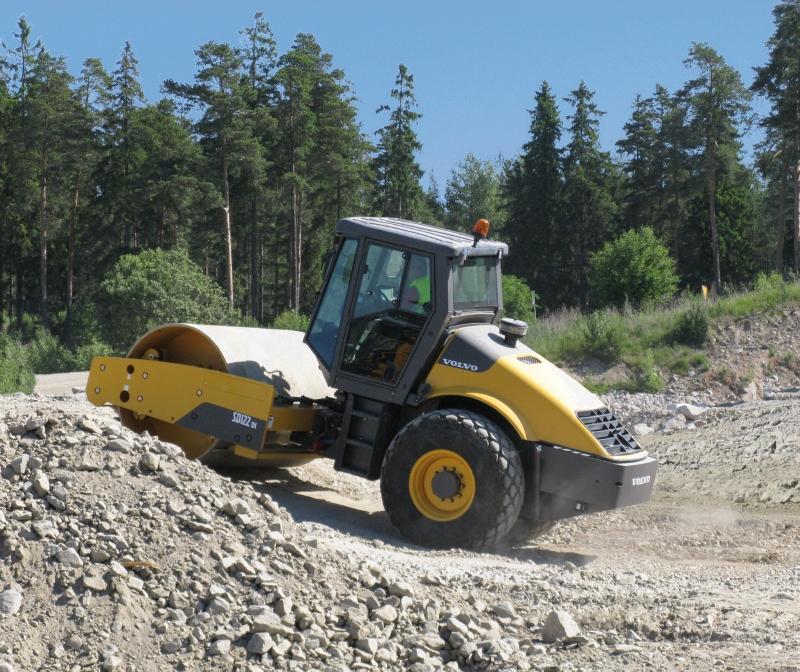

Volvo SD122DX Specifications & Technical Data (2008-2016)

Technical specs - SD122DX Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.2 t

Transport length: 5.9 m

Transport width: 2.29 m

Transport height: 3.09 m

Travel speed: 13.1 km/h

Frequency: 33.8 Hz

Roller width: 2.13 m

Rollers Ø: 1.51 m

Amplitude: 1.9 mm

Model series: SD

More technical details, like: vibration, drive, turning radius outside, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, turning radius outside, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Volvo SD122DX FAQ

When was the Volvo SD122DX manufactured?

The Volvo SD122DX was manufactured from 2008 to 2016.

How much does the Volvo SD122DX weigh?

The Volvo SD122DX weighs 12.2 tons.

What are the transport dimensions of the Volvo SD122DX single-drum roller?

The Volvo SD122DX has a transport length of 5.9 meters, a transport width of 2.29 meters, and a transport height of 3.09 meters.

What is the travel speed of the Volvo SD122DX single-drum roller?

The Volvo SD122DX has a travel speed of 13.1 km/h.

What are the compaction capabilities of the Volvo SD122DX?

The Volvo SD122DX has a compaction frequency of 33.8 Hz and an amplitude of 1.9 mm.

What are the roller specifications of the Volvo SD122DX single-drum roller?

The Volvo SD122DX has a roller width of 2.13 meters and a roller diameter of 1.51 meters.

How much is a Volvo SD122DX Single-drum Roller (2008u20132016) worth?

The residual value of the Volvo SD122DX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo SD122DX overview

Roller

Adjustable Frequency

By using the variable frequency setting, the operator can adapt the vibration to the particular material that is being compacted. On the larger models, the variable centrifugal force enables a depth compaction of down to one metre.

Operator's station

Do it with Ease – Well Protected

Volvo has a proud tradition of ergonomics and safety for one single reason: your operations are carried out by humans. Every part of the operator’s job should be safe and easy – that way you will get more out of his work. Minimizing fatigue, facilitate service and preventive maintenance and most important – eliminating risks – will give you more uptime and more satisfied operators in the meantime.

Operator Platforms and Cabs

The smaller SD25 and SD45 compactors have well isolated operator platforms with excellent visibility to carry out demanding jobs in cramped locations. The range from SD70 to SD200 can all be equipped with a safe and comfortable cab with controlled climate to keep the operator fresh through the workshift. All SD-compactors feature comprehensive operator panels with gauges for oil, fuel, and cooling temperature. Additionally, they can be fitted with the intelligent CompAnalyzer, providing full control over the compaction process. The operator platform or cab is easily tiltable for maximum access to maintain and service the compactor’s hydraulic components. Furthermore, the one-piece rear-hinged engine cover gives complete access to the engine’s service points. Not only does this facilitate the service job, but it also boosts your machine’s availability.
