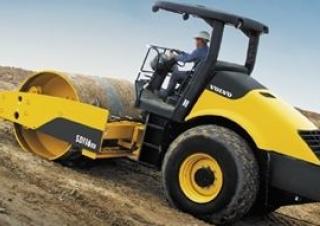

SD116DX Volvo SD116DX Specifications & Technical Data (2007—2012)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD116DX Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.85 t
- Transport length
- 5.9 m
- Transport width
- 2.29 m
- Transport height
- 3.09 m
- Travel speed
- 13.1 km/h
- Frequency
- 34 Hz
- Roller width
- 2.13 m
- Amplitude
- 1.92 mm
- Centrifugal force
- 271 kN
- Engine manuf.
- Cummins
- Engine type
- QSB6.7
- Engine power
- 119 kW
- No. of cylinders
- 6
- Emission level
- Tier 3
More technical details, like: vibration, drive, rollers Ø, turning radius outside, turning radius inside, statical line load, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
