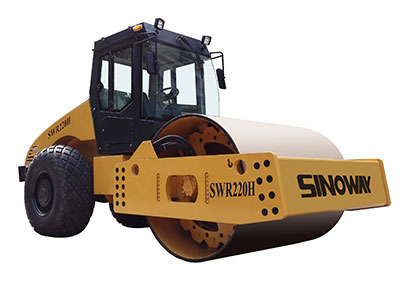

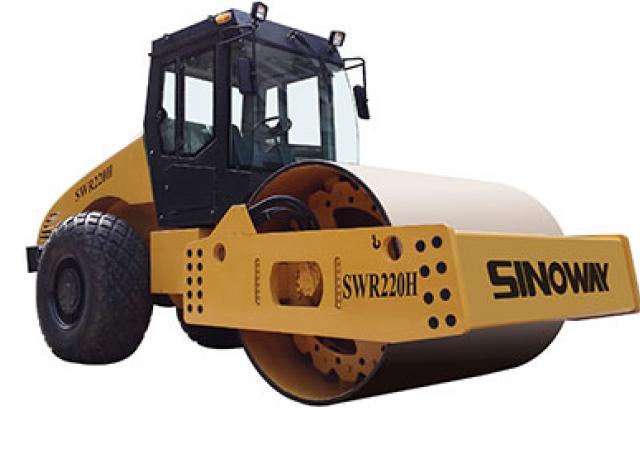

SWR220H Sinoway SWR220H Specifications & Technical Data (2025—2026)

Weight: 20t – Transport length: 5.82m – Transport width: 2.34m – Transport height: 3.05m – Travel speed: 11km/h – Frequency: 28/35Hz

Rollers Single-drum Rollers Sinoway SWR220H

Technical specs - SWR220H Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
5.82 m
Transport width
2.34 m
Transport height
3.05 m
Travel speed
11 km/h
Frequency
28/35 Hz
Roller width
2.1 m
Turning radius outside
7.5 m
Centrifugal force
300 kN
Model series
SWR
Engine manuf.
SDEC
Engine type
N/a
Engine power
140 kW
No. of cylinders
6

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
