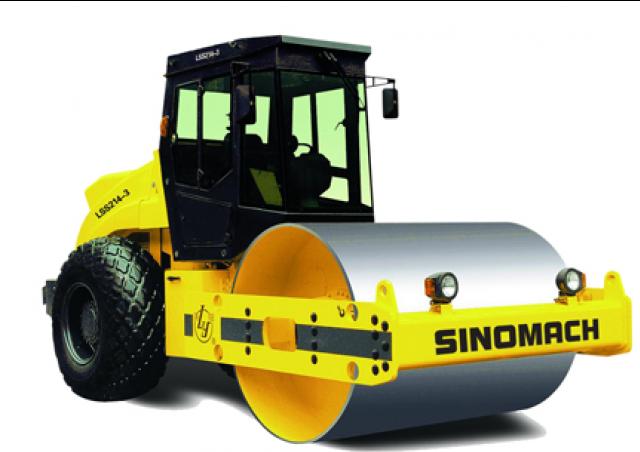

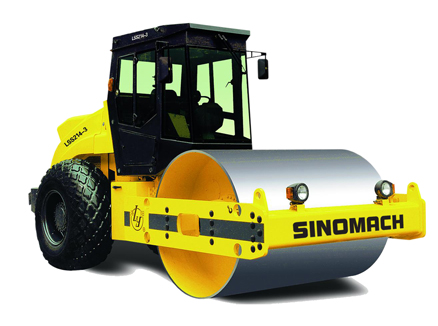

GYS12 Sinomach GYS12 Specifications & Technical Data (2017—2023)
Technical specs - GYS12 Sinomach
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12 t
- Transport length
- 6 m
- Transport width
- 2.28 m
- Transport height
- 3 m
- Travel speed
- 11 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.49 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 7 m
- Statical line load
- 29.06 kg/cm
- Model series
- GYS
- Engine manuf.
- Cummins
- Engine type
- 6BT
- Engine power
- 91.2 kW
More technical details, like: vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
