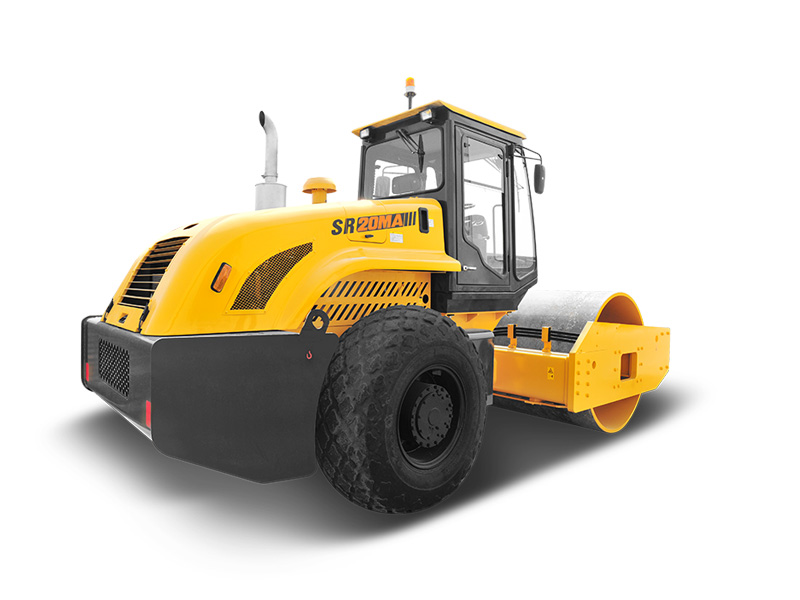

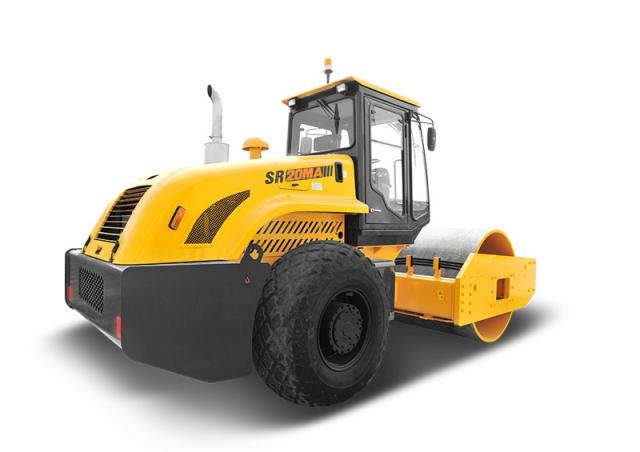

Shantui SR20MP Specifications & Technical Data (2018-2025)

Technical specs - SR20MP Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.8 t

Transport length: 6.23 m

Transport width: 2.33 m

Transport height: 3.18 m

Vibration: e

Drive: E

Frequency: 32 Hz

Roller width: 2.14 m

Amplitude: 2 mm

Statical line load: 34 kg/cm

Model series: 14-26T

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Shantui SR20MP FAQ

When was the Shantui SR20MP manufactured?

The Shantui SR20MP was first produced in 2018.

How much does the Shantui SR20MP weigh?

The Shantui SR20MP weighs 20.8 tons.

What are the transport dimensions of the Shantui SR20MP single-drum roller?

The Shantui SR20MP has a transport length of 6.23 meters, a transport width of 2.33 meters, and a transport height of 3.18 meters.

What type of drive system does the Shantui SR20MP have in its undercarriage?

The Shantui SR20MP has a simple drive system in its undercarriage.

What are the compaction capabilities of the Shantui SR20MP single-drum roller?

The Shantui SR20MP features a single vibration system with a frequency of 32 Hz, an amplitude of 2 mm, and a statical line load of 34 kg/cm.

What is the roller width of the Shantui SR20MP single-drum roller?

The Shantui SR20MP has a roller width of 2.14 meters.

How much is a Shantui SR20MP Single-drum Roller (2018u20132025) worth?

The residual value of the Shantui SR20MP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
