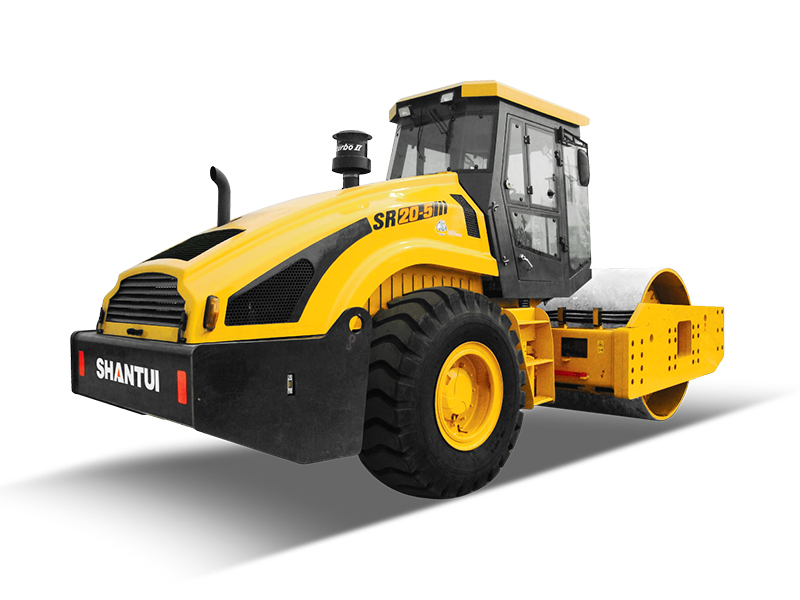

SR20-5 Shantui SR20-5 Specifications & Technical Data (2018—2020)
Technical specs - SR20-5 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20 t
- Transport length
- 6.5 m
- Transport width
- 3.15 m
- Transport height
- 2.4 m
- Vibration
- e
- Drive
- E
- Frequency
- 32 Hz
- Roller width
- 2.14 m
- Amplitude
- 1.85 mm
- Statical line load
- 61 kg/cm
- Model series
- 14-26T
- Engine manuf.
- Cummins
- Engine type
- 6CTAA8.3-C215
- Engine power
- 160 kW
- Dimension lxwxh
- 1560x900x1400 mm
- Displacement
- 8.3 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 980 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 114x135 mm
- Emission level
- Euro II
More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
