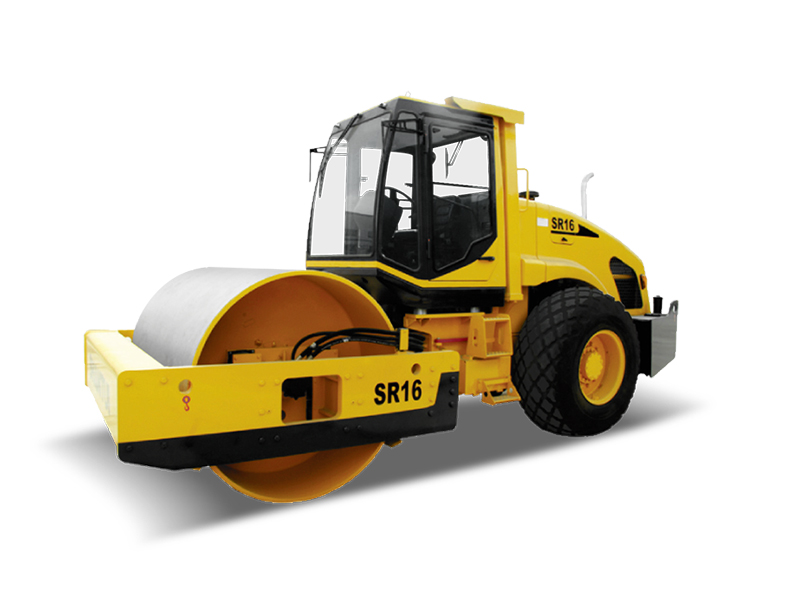

Shantui SR16P Specifications & Technical Data (2018-2020)

Technical specs - SR16P Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.5 t

Transport length: 5.71 m

Transport width: 2.45 m

Transport height: 2.98 m

Vibration: e

Drive: E

Frequency: 32 Hz

Roller width: 2.14 m

Amplitude: 1.8 mm

Statical line load: 51 kg/cm

Model series: 14-26T

Engine manuf.: Cummins

Engine type: 6BT5.9-C152

Engine power: 112 kW

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Shantui SR16P FAQ

When was the Shantui SR16P manufactured?

The Shantui SR16P was manufactured from 2018 to 2020.

How much does the Shantui SR16P weigh?

The Shantui SR16P weighs 16.5 tons.

What are the transport dimensions of the Shantui SR16P single-drum roller?

The Shantui SR16P has a transport length of 5.71 meters, a transport width of 2.45 meters, and a transport height of 2.98 meters.

What type of drive does the Shantui SR16P have?

The Shantui SR16P has a simple drive system.

What are the compaction capabilities of the Shantui SR16P single-drum roller?

The Shantui SR16P features a single vibration system operating at a frequency of 32 Hz with an amplitude of 1.8 mm and a statical line load of 51 kg/cm.

What is the roller width of the Shantui SR16P single-drum roller?

The Shantui SR16P has a roller width of 2.14 meters.

How much is a Shantui SR16P Single-drum Roller (2018u20132020) worth?

The residual value of the Shantui SR16P depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
