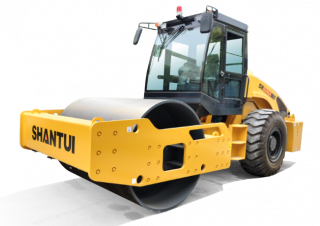

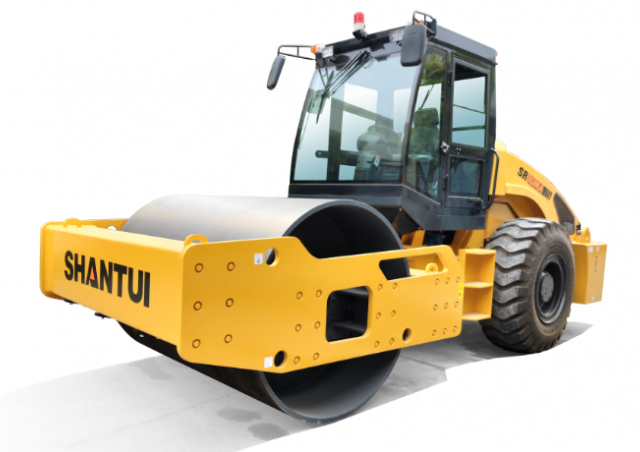

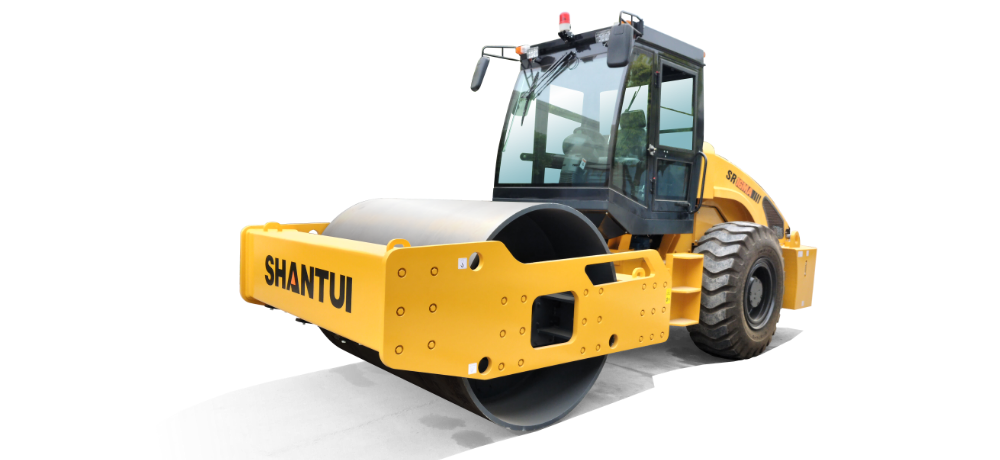

SR16MA Shantui SR16MA Specifications & Technical Data (2023—2026)
Technical specs - SR16MA Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16 t
- Transport length
- 6.24 m
- Transport width
- 2.28 m
- Transport height
- 3.08 m
- Travel speed
- 10.5 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.55 m
- Amplitude
- 1.8 mm
- Turning radius inside
- 6.5 m
- Centrifugal force
- 325 kN
- Engine manuf.
- Weichai
- Engine type
- WP6G160E201
- Engine power
- 118 kW
- Displacement
- 6.75 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 650 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x130 mm
- Emission level
- Stage II
More technical details, like: vibration, drive, turning radius outside, statical line load, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Shantui SR16MA FAQ
How much does the Shantui SR16MA weigh?
What are the transport dimensions of the Shantui SR16MA single-drum roller?
What is the travel speed of the Shantui SR16MA single-drum roller?
What is the inside turning radius of the Shantui SR16MA single-drum roller?
What are the vibration frequency and centrifugal force of the Shantui SR16MA single-drum roller?
What is the diameter of the roller on the Shantui SR16MA?
How much is a Shantui SR16MA Single-drum Roller (2023u20132025) worth?
