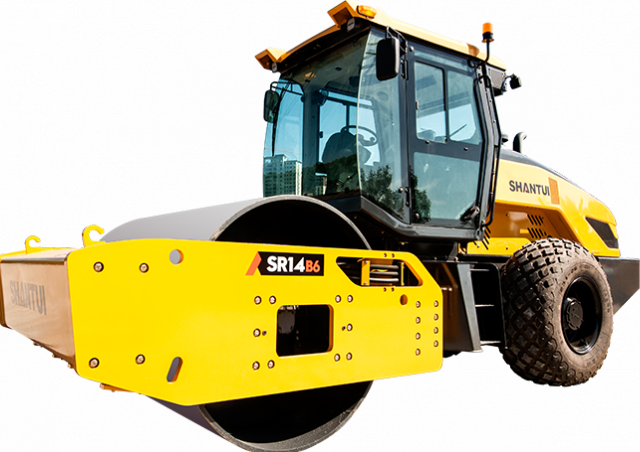

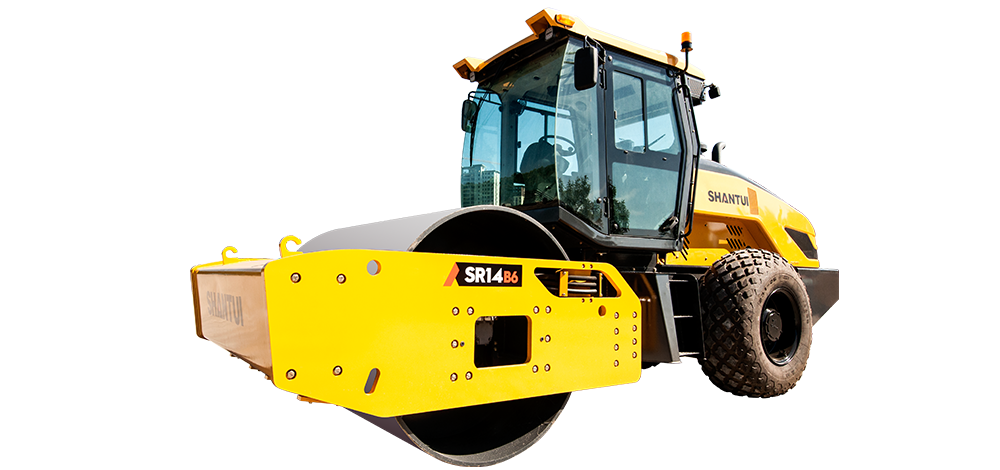

Shantui SR14-B6
- Weight:
- 14 t
- Transport length:
- 6.78 m
- Transport width:
- 2.305 m
- Transport height:
- 3.31 m
SR14-B6 Shantui SR14-B6 Specifications & Technical Data (2025—2026)
Technical specs - SR14-B6 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 6.78 m
- Transport width
- 2.305 m
- Transport height
- 3.31 m
- Travel speed
- 9.5 km/h
- Frequency
- 36 Hz
- Amplitude
- 2 mm
- Turning radius inside
- 7.26 m
- Centrifugal force
- 310 kN
- Engine manuf.
- Weichai
- Engine type
- WP6
- Engine power
- 129 kW
- Emission level
- Stage II
More technical details, like: vibration, drive, roller width, rollers Ø, turning radius outside, statical line load, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
