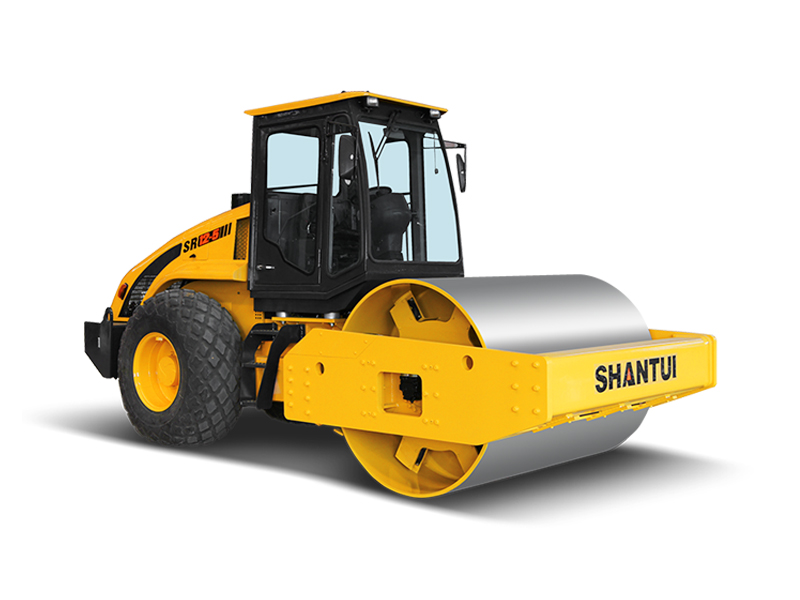

Shantui SR12P-5 Specifications & Technical Data (2018-2025)

Q: When was the Shantui SR12P-5 manufactured?

The Shantui SR12P-5 was first produced in 2018.

Q: How much does the Shantui SR12P-5 weigh?

The Shantui SR12P-5 weighs 13.45 tons.

Q: What are the transport dimensions of the Shantui SR12P-5 single-drum roller?

The Shantui SR12P-5 has a transport length of 6.02 meters, a transport width of 2.36 meters, and a transport height of 3.13 meters.

Q: What type of drive system does the Shantui SR12P-5 use in its undercarriage?

The Shantui SR12P-5 uses a simple drive system in its undercarriage.

Q: What are the compaction capabilities of the Shantui SR12P-5 single-drum roller?

The Shantui SR12P-5 features a single vibration system with a frequency of 33 Hz, an amplitude of 1.8 mm, and a statical line load of 38 kg/cm.

Q: What is the roller width of the Shantui SR12P-5 single-drum roller?

The Shantui SR12P-5 has a roller width of 2.14 meters.

Q: How much is a Shantui SR12P-5 Single-drum Roller (2018u20132025) worth?

The residual value of the Shantui SR12P-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Technical specs - SR12P-5 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.45 t

Transport length: 6.02 m

Transport width: 2.36 m

Transport height: 3.13 m

Vibration: e

Drive: E

Frequency: 33 Hz

Roller width: 2.14 m

Amplitude: 1.8 mm

Statical line load: 38 kg/cm

Model series: <14T

Engine manuf.: Weichai

Engine type: WP6G140E22

Engine power: 105 kW

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No
