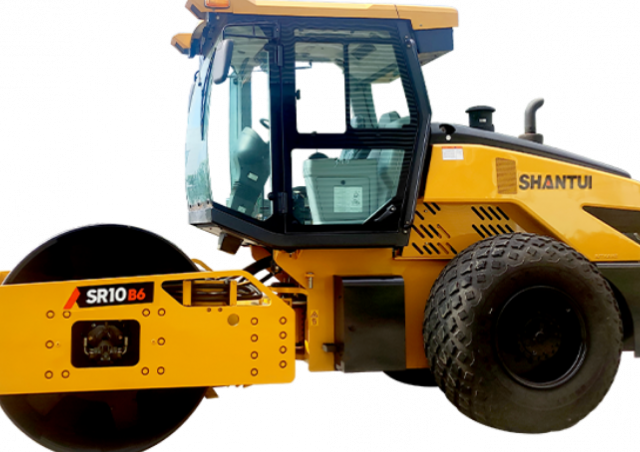

SR10-B6 Shantui SR10-B6 Specifications & Technical Data (2025—2026)

Weight: 10t – Transport length: 5.89m – Transport width: 2.305m – Transport height: 3.16m – Travel speed: 9.9km/h – Frequency: 36Hz

Rollers Single-drum Rollers Shantui SR10-B6

Technical specs - SR10-B6 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Transport length
5.89 m
Transport width
2.305 m
Transport height
3.16 m
Travel speed
9.9 km/h
Frequency
36 Hz
Roller width
2.13 m
Rollers Ø
1.5 m
Amplitude
2 mm
Turning radius inside
6.4 m
Centrifugal force
270 kN
Engine manuf.
Weichai
Engine type
WP4G130E22
Engine power
97.5 kW
Displacement
4.5 l
Revolutions at max torque
1600 rpm
Max. torque
560 Nm
No. of cylinders
4
Cylinder bore x stroke
105x130 mm
Emission level
Stage II / China II

More technical details, like: vibration, drive, turning radius outside, statical line load, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
