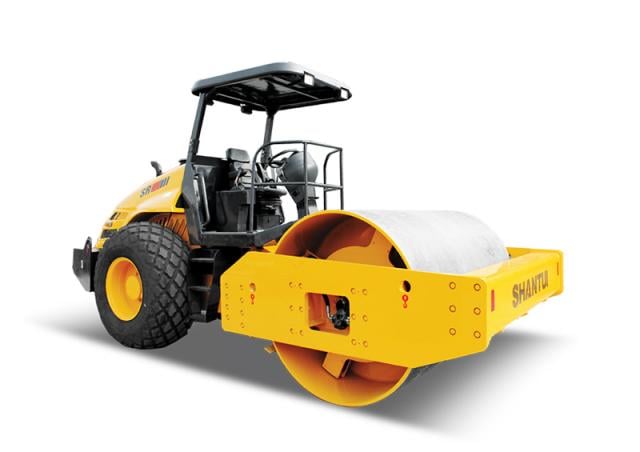

SR10 Shantui SR10 Specifications & Technical Data (2018—2025)
Technical specs - SR10 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.12 t
- Transport length
- 5.86 m
- Transport width
- 2.31 m
- Transport height
- 3.01 m
- Vibration
- e
- Drive
- E
- Frequency
- 36 Hz
- Roller width
- 2.13 m
- Amplitude
- 2 mm
- Statical line load
- 28 kg/cm
- Model series
- <14T
- Engine manuf.
- Weichai
- Engine type
- WP4G110E220
- Engine power
- 82 kW
More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
