520 SEM 520 Specifications & Technical Data (2020—2026)

Weight: 20t – Transport length: 6.25m – Transport width: 2.31m – Transport height: 3.2m – Vibration: r – Drive: E

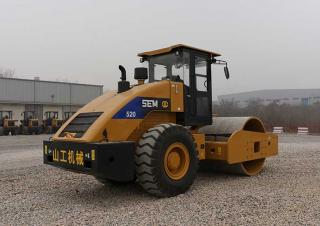

Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520
Rollers Single-drum Rollers SEM 520

Technical specs - 520 SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
6.25 m
Transport width
2.31 m
Transport height
3.2 m
Vibration
r
Drive
E
Travel speed
9.6 km/h
Frequency
30 Hz
Roller width
2.13 m
Rollers Ø
1.6 m
Amplitude
2 mm
Turning radius outside
6.35 m
Centrifugal force
360 kN
Engine manuf.
k.A.
Engine type
k.A.
Engine power
129 kW
Revolutions at max torque
2000 rpm

More technical details, like: turning radius inside, statical line load, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

SEM 520 FAQ

When was the SEM 520 manufactured?

The SEM 520 was first produced in 2020.

How much does the SEM 520 single-drum roller weigh?

The SEM 520 single-drum roller weighs 20 tons.

What are the transport dimensions of the SEM 520 single-drum roller?

The SEM 520 has a transport length of 6.25 meters, a transport width of 2.31 meters, and a transport height of 3.2 meters.

What is the travel speed of the SEM 520 single-drum roller?

The SEM 520 single-drum roller has a travel speed of 9.6 km/h.

What type of drive system does the SEM 520 single-drum roller have?

The SEM 520 single-drum roller has a simple drive system.

What is the turning radius of the SEM 520 single-drum roller?

The SEM 520 single-drum roller has an outside turning radius of 6.35 meters.

What are the compaction capabilities of the SEM 520 single-drum roller?

The SEM 520 features a vibrator in frame system with a frequency of 30 Hz, an amplitude of 2 mm, and generates a centrifugal force of 360 kN.

What are the roller specifications of the SEM 520 single-drum roller?

The SEM 520 has a roller width of 2.13 meters and a roller diameter of 1.6 meters.
