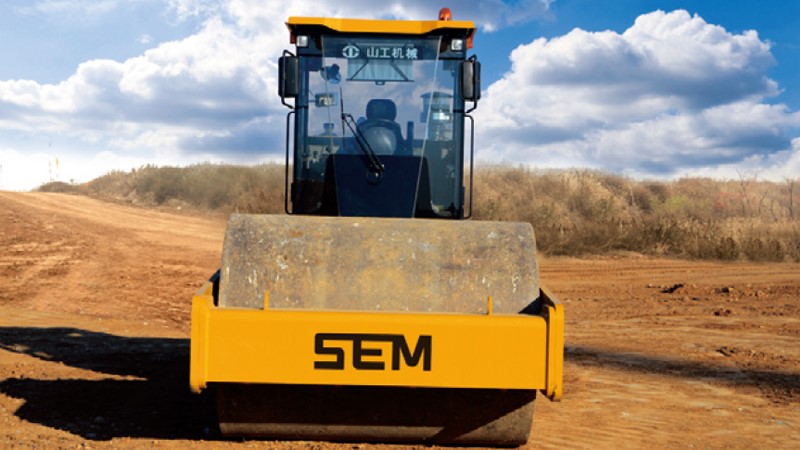

    SEM 518 Specifications & Technical Data (2020-2023)

    Rate this machine now!

    Weight: 18t – Transport length: 6.25m – Transport width: 2.31m – Transport height: 3.2m – Vibration: r – Drive: E


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 18 t
    • Transport length 6.25 m
    • Transport width 2.31 m
    • Transport height 3.2 m
    • Vibration r
    • Drive E
    • Travel speed 9.6 km/h
    • Frequency 30 Hz
    • Roller width 2.13 m
    • Rollers Ø 1.6 m
    • Amplitude 2/1 mm
    • Turning radius outside 6.35 m
    • Centrifugal force 327 kN
    • Engine manuf. k.A.
    • Engine type k.A.
    • Engine power 129 kW
    • Revolutions at max torque 2000 rpm

    More technical details, like: turning radius inside, statical line load, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin

    Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition
