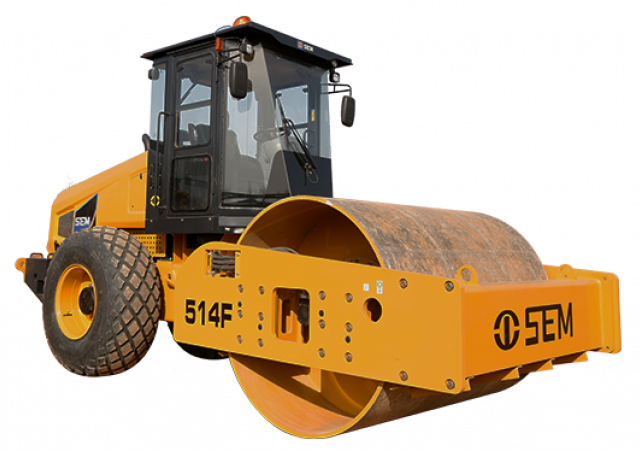

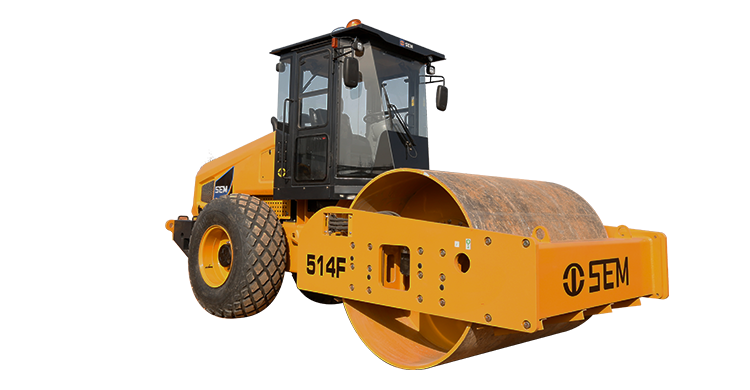

SEM 514F
- Weight:
- 14 t
- Transport length:
- 5.915 m
- Transport width:
- 2.29 m
- Transport height:
- 3.185 m
514F SEM 514F Specifications & Technical Data (2026—2026)
Technical specs - 514F SEM
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 5.915 m
- Transport width
- 2.29 m
- Transport height
- 3.185 m
- Travel speed
- 11.6 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Turning radius outside
- 6.145 m
- Centrifugal force
- 306 kN
- Engine manuf.
- SDEC
- Engine type
- SC7H170.1G2B
- Engine power
- 125 kW
- Emission level
- China Stage II
More technical details, like: vibration, drive, amplitude, turning radius inside, statical line load, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
