510 SEM 510 Specifications & Technical Data (2020—2026)

Weight: 10t – Transport length: 5.82m – Transport width: 2.29m – Transport height: 3.13m – Vibration: d – Drive: E

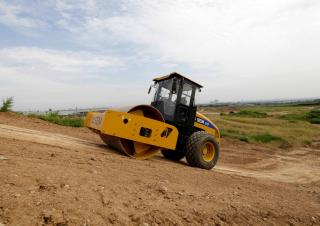

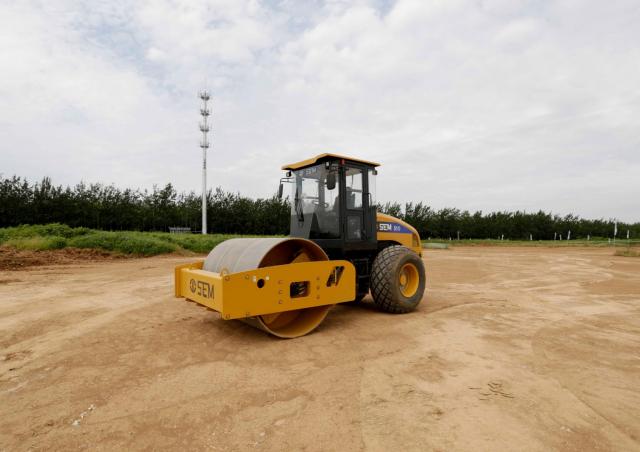

Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510
Rollers Single-drum Rollers SEM 510

Technical specs - 510 SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Transport length
5.82 m
Transport width
2.29 m
Transport height
3.13 m
Vibration
d
Drive
E
Frequency
33 Hz
Roller width
2.13 m
Rollers Ø
1.59 m
Amplitude
1.8 mm
Turning radius inside
5.99 m
Centrifugal force
215 kN
Engine manuf.
Weichai
Engine type
WP4
Engine power
97.5 kW
Revolutions at max torque
2200 rpm

More technical details, like: travel speed, turning radius outside, statical line load, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
Yes
Compression control
No
Aircondition
Yes

Download datasheets (PDF)

SEM 510 FAQ

When was the SEM 510 manufactured?

The SEM 510 was first produced in 2020.

How much does the SEM 510 weigh?

The SEM 510 weighs 10 tons.

What are the transport dimensions of the SEM 510 single-drum roller?

The SEM 510 has a transport length of 5.82 meters, a transport width of 2.29 meters, and a transport height of 3.13 meters.

What is the drive type of the SEM 510 single-drum roller?

The SEM 510 single-drum roller has a Simple drive.

What is the turning radius of the SEM 510 single-drum roller?

The SEM 510 has an inside turning radius of 5.99 meters.

What are the compaction capabilities of the SEM 510 single-drum roller?

The SEM 510 features a double vibration system, operates at a frequency of 33 Hz with an amplitude of 1.8 mm, and generates a centrifugal force of 215 kN.

What are the roller specifications of the SEM 510 single-drum roller?

The SEM 510 has a roller width of 2.13 meters and a roller diameter of 1.59 meters.

How much is a SEM 510 Single-drum Roller (2020u20132025) worth?

The residual value of the SEM 510 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
