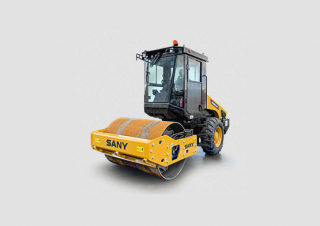

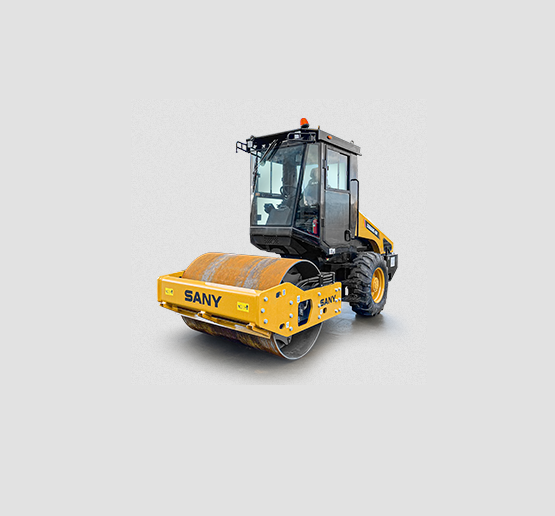

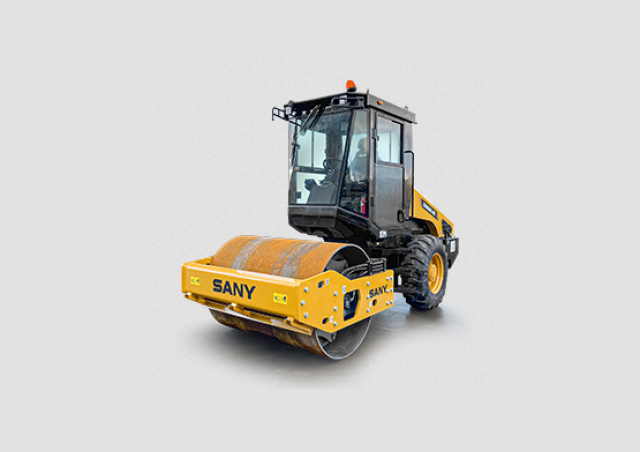

SSR80C Sany SSR80C Specifications & Technical Data (2024—2026)
Visit Sany live at
Technical specs - SSR80C Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.33 t
- Transport length
- 5.16 m
- Transport width
- 1.83 m
- Transport height
- 3.05 m
- Vibration
- e
- Drive
- A
- Travel speed
- 11.5 km/h
- Frequency
- 29,5/33,5 Hz
- Roller width
- 1.676 m
- Rollers Ø
- 1.215 m
- Amplitude
- 1.9 mm
- Statical line load
- 21.9 kg/cm
- Centrifugal force
- 132 kN
- Model series
- SSR
- Engine manuf.
- Yanmar
- Engine type
- 4TNV98CT-VSY
- Engine power
- 53.7 kW
- Displacement
- 3.318 l
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 290/1350 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: turning radius outside, turning radius inside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
