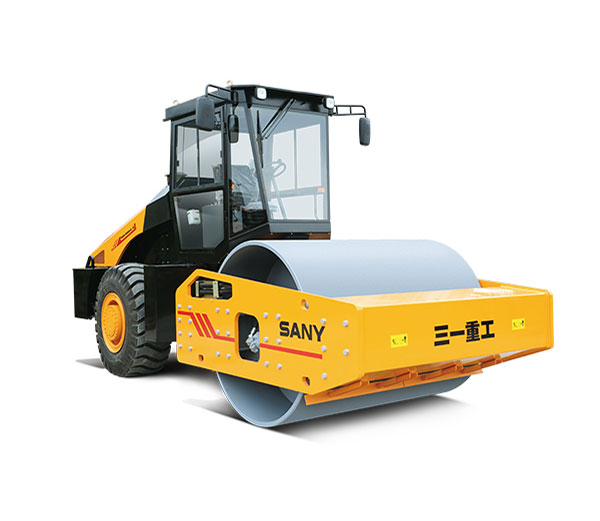

Sany SSR220AC-8 Specifications & Technical Data (2017-2020)

Technical specs - SSR220AC-8 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22 t

Transport length: 6.48 m

Transport width: 2.3 m

Transport height: 3.33 m

Vibration: d

Drive: E

Travel speed: 10 km/h

Frequency: 35 Hz

Roller width: 2.13 m

Rollers Ø: 1.6 m

Amplitude: 1.9 mm

Statical line load: 52.61 kg/cm

Model series: SSR

Engine manuf.: Weichai

Engine type: WP6G200E331

Engine power: 147 kW

No. of cylinders: 4

Emission level: Tier III

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Sany SSR220AC-8 FAQ

When was the Sany SSR220AC-8 manufactured?

The Sany SSR220AC-8 was manufactured from 2017 to 2020.

How much does the Sany SSR220AC-8 weigh?

The Sany SSR220AC-8 weighs 22 tons.

What are the transport dimensions of the Sany SSR220AC-8 single-drum roller?

The Sany SSR220AC-8 has transport dimensions of 6.48 meters in length, 2.3 meters in width, and 3.33 meters in height.

What is the travel speed of the Sany SSR220AC-8 single-drum roller?

The Sany SSR220AC-8 has a travel speed of 10 km/h.

What type of drive system does the Sany SSR220AC-8 have in its undercarriage?

The Sany SSR220AC-8 has a simple drive system in its undercarriage.

What are the compaction capabilities of the Sany SSR220AC-8 single-drum roller?

The Sany SSR220AC-8 features a double vibration system, operates at a frequency of 35 Hz with an amplitude of 1.9 mm, and has a statical line load of 52.61 kg/cm.

What are the roller specifications of the Sany SSR220AC-8 single-drum roller?

The Sany SSR220AC-8 has a roller width of 2.13 meters and a roller diameter of 1.6 meters.

How much is a Sany SSR220AC-8 Single-drum Roller (2017u20132020) worth?

The residual value of the Sany SSR220AC-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
