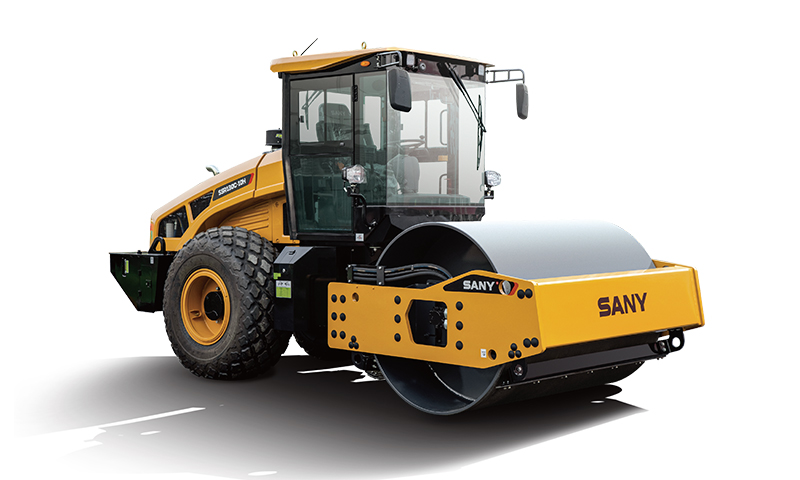

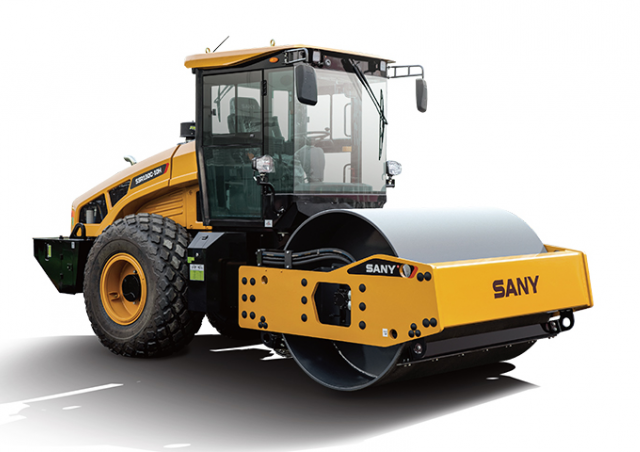

SSR130C-10H Sany SSR130C-10H Specifications & Technical Data (2025—2026)
Visit Sany live at
Technical specs - SSR130C-10H Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13 t
- Transport length
- 5.8 m
- Transport width
- 2.28 m
- Transport height
- 3 m
- Frequency
- 30/35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Centrifugal force
- 280 kN
- Model series
- SSR
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.1 l
- Revolutions at max torque
- 2000 rpm
- Emission level
- V
More technical details, like: vibration, drive, travel speed, turning radius outside, turning radius inside, statical line load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
