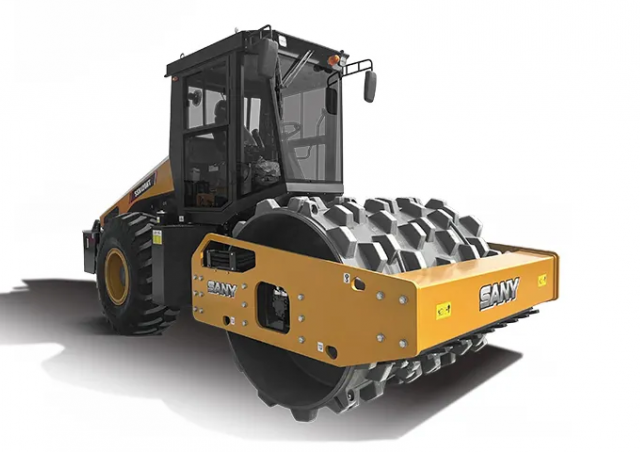

SSR120HT Sany SSR120HT Specifications & Technical Data (2025—2026)
Visit Sany live at
Technical specs - SSR120HT Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12 t
- Transport length
- 5.875 m
- Transport width
- 2.24 m
- Transport height
- 3.023 m
- Vibration
- e
- Travel speed
- 9 km/h
- Frequency
- 32/36 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 11.915 m
- Statical line load
- 32.9 kg/cm
- Centrifugal force
- 280 kN
- Model series
- SSR
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 119 kW
- Displacement
- 4.5 l
- Max. torque
- 624/1500 Nm
- No. of cylinders
- 4
- Emission level
- T4f
More technical details, like: drive, turning radius inside, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
