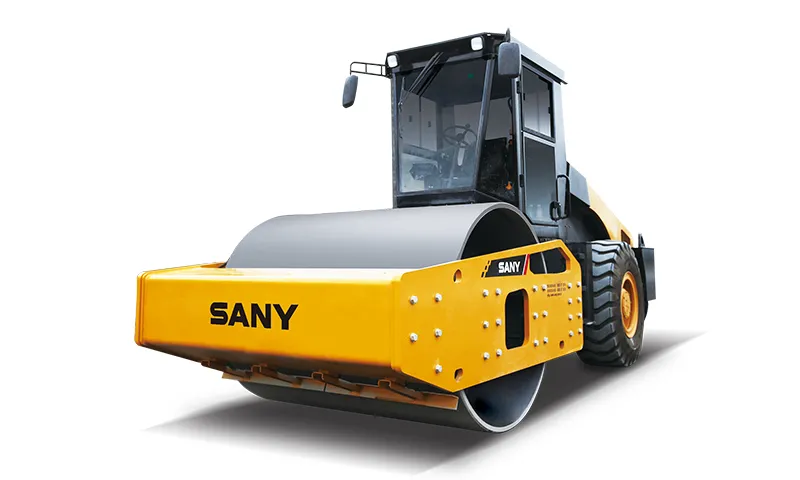

SSR100C-10S Sany SSR100C-10S Specifications & Technical Data (2025—2026)
.png)
.png)
Visit Sany live at
Technical specs - SSR100C-10S Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.7 t
- Transport length
- 5.8 m
- Transport width
- 2.285 m
- Transport height
- 3 m
- Vibration
- e
- Travel speed
- 12 km/h
- Frequency
- 32/40 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 11.7 m
- Statical line load
- 26.8 kg/cm
- Centrifugal force
- 280 kN
- Model series
- SSR
- Engine manuf.
- Cummins
- Engine type
- 4BTAA3.9-C125
- Engine power
- 93 kW
- Displacement
- 3.9 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- Euro II
More technical details, like: drive, turning radius inside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
