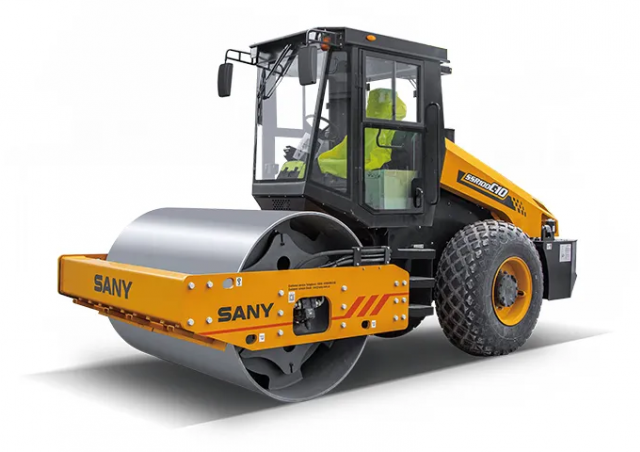

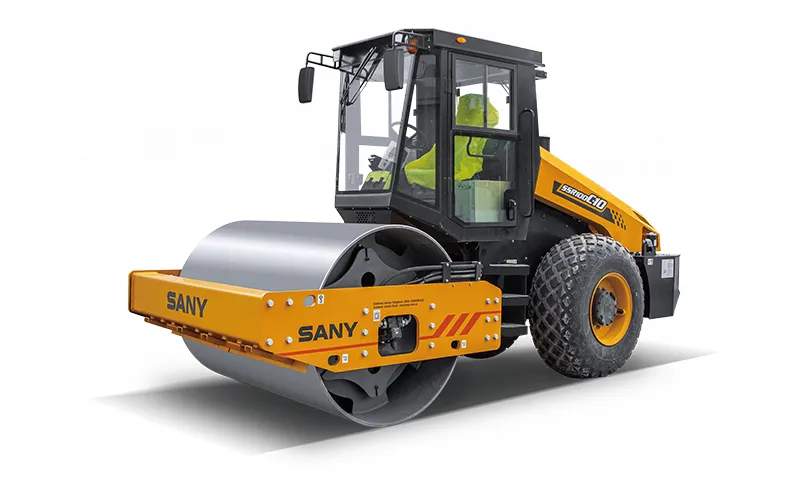

SSR100C-10 Sany SSR100C-10 Specifications & Technical Data (2025—2026)
Visit Sany live at
Technical specs - SSR100C-10 Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10 t
- Transport length
- 5.775 m
- Transport width
- 2.285 m
- Transport height
- 3.225 m
- Vibration
- e
- Travel speed
- 12.5 km/h
- Frequency
- 30/30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Turning radius outside
- 11.6 m
- Statical line load
- 26.8 kg/cm
- Centrifugal force
- 246 kN
- Model series
- SSR
- Engine manuf.
- Cummins China
- Engine type
- QSB3.9-C125-30
- Engine power
- 93 kW
- No. of cylinders
- 4
- Emission level
- NR3
More technical details, like: drive, turning radius inside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
