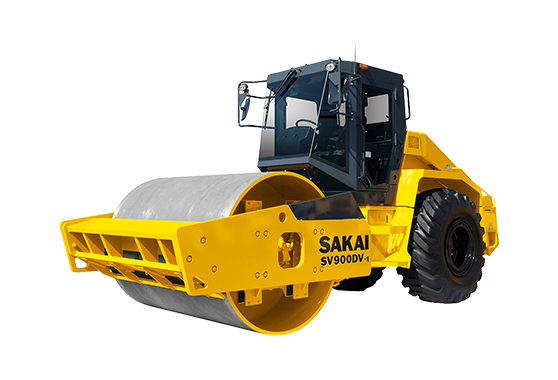

    Sakai SV900DV-1 Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 20.32t – Transport length: 6.555m – Transport width: 2.32m – Transport height: 3.04m – Travel speed : 10km/h – Frequency: 28Hz

    Technical specs - SV900DV-1 Sakai

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 20.32 t
    • Transport length 6.555 m
    • Transport width 2.32 m
    • Transport height 3.04 m
    • Travel speed 10 km/h
    • Frequency 28 Hz
    • Roller width 2.13 m
    • Rollers Ø 1.6 m
    • Amplitude 2.2 mm
    • Turning radius outside 6 m
    • Turning radius inside 3.8 m
    • Centrifugal force 343 kN
    • Engine manuf. Isuzu
    • Engine type AH-4HK1XYLB-01
    • Engine power 137.5 kW
    • Displacement 5.193 l
    • Revolutions at max torque 2100 rpm
    • No. of cylinders 4
    • Emission level Tier 3

    More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin

    Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition

    Carbon footprint calculator for Single-drum Rollers

    See the ERA equipment CO2 Calculator to find out the CO2 emissions per hour of use of the Sakai SV900DV-1 or alternative Single-drum Rollers.

    The carbon footprint calculation can be carried out considering different motor oil consumption scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Solutions

    The all-in-one 3D machine control solution for your entire fleet

    Due to the visualisation of the required result, the machine control brings many benefits:

    • Accuracy and fast goal achievements
    • Safety increases – all is managed by the machine operator
    • Lower fuel consumption – environmental friendliness
    • Limiting project delays by significantly reducing the risk of accidental damage to utility or pipe
    • Simpler documentation activities with data exported in CSV format

    Find out more details about how the machine control solution can help you in your daily routine on our website or come visit us at bauma.

    Hexagon teaser
    Ein Service von: Hexagon

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Blinto
    Find out more
    Service provided by: Blinto

    Used Sakai Single-drum Rollers for sale

    We obtain best deals from many sources about Single-drum Rollers.
    Compare current offers on the most popular classified portals presenting second hand Single-drum Rollers to buy in many countries.

    Get in touch for more details:

    Compare Sakai SV900DV-1 with similar Single-drum Rollers

    Press 1 image

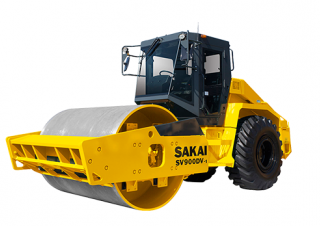

    Sakai SV900DV-1
