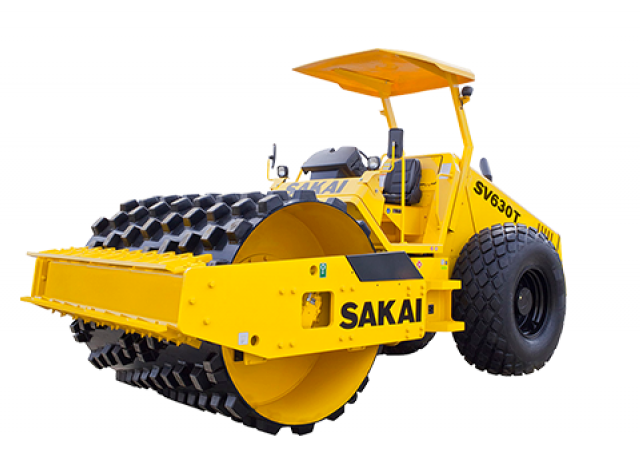

SV630T Sakai SV630T Specifications & Technical Data (2018—2026)
Technical specs - SV630T Sakai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 13.29 t
- Transport length
- 5.84 m
- Transport width
- 2.295 m
- Transport height
- 2.925 m
- Travel speed
- 10 km/h
- Frequency
- 33.3 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Amplitude
- 1.92 mm
- Turning radius outside
- 5.6 m
- Turning radius inside
- 3.5 m
- Centrifugal force
- 255 kN
- Model series
- SV630
- Engine manuf.
- Cummins
- Engine type
- QSB 4,5
- Engine power
- 110 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- Tier 3
More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
