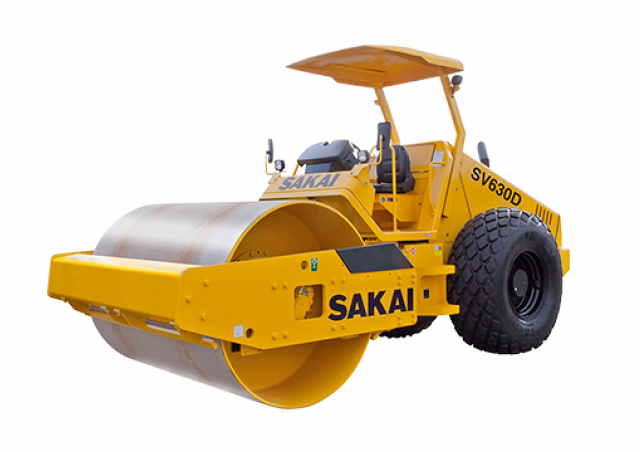

SV630D Sakai SV630D Specifications & Technical Data (2018—2026)

Weight: 12.95t – Transport length: 5.84m – Transport width: 2.295m – Transport height: 2.91m – Travel speed: 10km/h – Frequency: 33.3Hz

Rollers Single-drum Rollers Sakai SV630D

Technical specs - SV630D Sakai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.95 t
Transport length
5.84 m
Transport width
2.295 m
Transport height
2.91 m
Travel speed
10 km/h
Frequency
33.3 Hz
Roller width
2.13 m
Rollers Ø
1.53 m
Amplitude
2.08 mm
Turning radius outside
5.6 m
Turning radius inside
3.5 m
Centrifugal force
255 kN
Model series
SV630
Engine manuf.
Cummins
Engine type
QSB 4,5
Engine power
110 kW
Displacement
4.5 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
Tier 3

More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Sakai SV630D FAQ

When was the Sakai SV630D manufactured?

The Sakai SV630D was first produced in 2018.

How much does the Sakai SV630D weigh?

The Sakai SV630D weighs 12.95 tons.

What are the transport dimensions of the Sakai SV630D single-drum roller?

The Sakai SV630D has transport dimensions of 5.84 meters in length, 2.3 meters in width, and 2.91 meters in height.

What is the travel speed of the Sakai SV630D single-drum roller?

The Sakai SV630D has a travel speed of 10 km/h.

What are the turning radius specifications for the Sakai SV630D single-drum roller?

The Sakai SV630D has an outside turning radius of 5.6 meters and an inside turning radius of 3.5 meters.

What are the vibration specifications of the Sakai SV630D single-drum roller?

The Sakai SV630D single-drum roller operates at a frequency of 33.3 Hz, has an amplitude of 2.08 mm, and generates a centrifugal force of 255 kN.

What are the roller specifications of the Sakai SV630D single-drum roller?

The Sakai SV630D has a roller width of 2.13 meters and a roller diameter of 1.53 meters.

How much is a Sakai SV630D Single-drum Roller (2018u20132025) worth?

The residual value of the Sakai SV630D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sakai SV630D overview

Engine and powertrain

Low Operating Costs

Sakai's new Eco compaction mode (ECM), which reduces fuel consumption up to 20%, while maintaining compactive performance.Quality and durable components such as hydraulics, drum, and center-pin hitch provide less maintenance.


Roller

Vibratory single drum roller

The innovatively designed SV630 is applicable to medium to large soil compaction jobs. The SV630 includes new roller features and optimizes job profitability through efficiency.


Proven Compactive Performance

Roller compactive force reaches target density in less number of roller passes.Provides higher centrifugal force and amplitude.Achieves uniform compaction throughout lift thickness.
