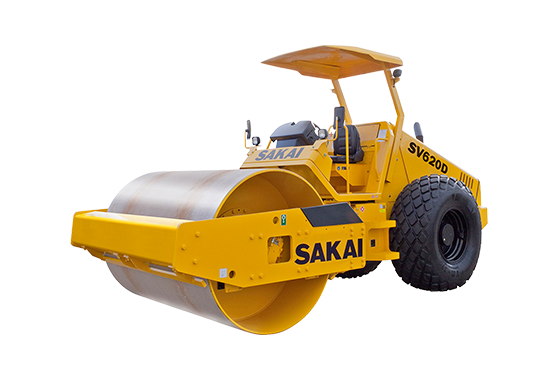

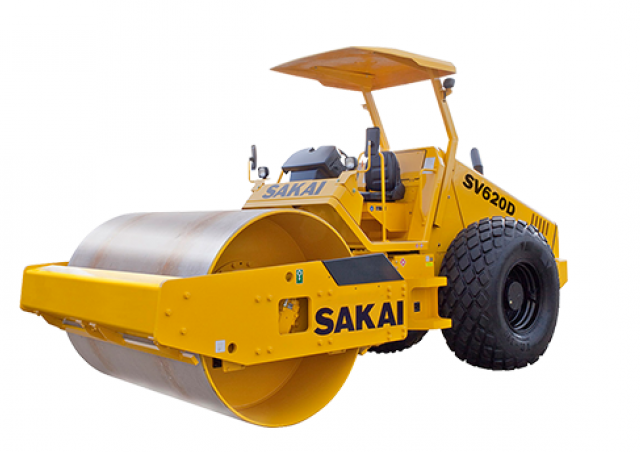

SV620D Sakai SV620D Specifications & Technical Data (2018—2026)

Weight: 12.89t – Transport length: 5.84m – Transport width: 2.295m – Transport height: 2.91m – Travel speed: 10km/h – Frequency: 33.3Hz

Rollers Single-drum Rollers Sakai SV620D

Technical specs - SV620D Sakai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.89 t
Transport length
5.84 m
Transport width
2.295 m
Transport height
2.91 m
Travel speed
10 km/h
Frequency
33.3 Hz
Roller width
2.13 m
Rollers Ø
1.53 m
Amplitude
2.09 mm
Turning radius outside
5.6 m
Turning radius inside
3.5 m
Centrifugal force
255 kN
Model series
SV620
Engine manuf.
Isuzu
Engine type
4BG1T
Engine power
83.3 kW
Displacement
4.329 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
Tier 2

More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Sakai SV620D FAQ

When was the Sakai SV620D manufactured?

The Sakai SV620D was first produced in 2018.

How much does the Sakai SV620D weigh?

The Sakai SV620D weighs 12.89 tons.

What are the transport dimensions of the Sakai SV620D single-drum roller?

The Sakai SV620D has a transport length of 5.84 meters, a transport width of 2.3 meters, and a transport height of 2.91 meters.

What is the travel speed of the Sakai SV620D single-drum roller?

The Sakai SV620D has a travel speed of 10 km/h.

What are the turning radius specifications for the Sakai SV620D single-drum roller?

The Sakai SV620D has an outside turning radius of 5.6 meters and an inside turning radius of 3.5 meters.

What are the compaction capabilities of the Sakai SV620D single-drum roller?

The Sakai SV620D operates at a frequency of 33.3 Hz, has an amplitude of 2.09 mm, and generates a centrifugal force of 255 kN in its compaction system.

What are the roller specifications of the Sakai SV620D single-drum roller?

The Sakai SV620D has a roller width of 2.13 meters and a roller diameter of 1.53 meters.

How much is a Sakai SV620D Single-drum Roller (2018u20132025) worth?

The residual value of the Sakai SV620D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sakai SV620D overview

Engine and powertrain

Low Operating Costs

Sakai’s new Eco compaction mode (ECM) reduces fuel consumption by up to 20% while maintaining compactive performance. Quality and durable components, such as hydraulics, drum, and center-pin hitch, provide less maintenance.


Roller

Vibratory single drum roller

The innovatively designed SV620 is applicable to medium to large soil compaction jobs. The SV620 includes new roller features and optimizes job profitability through efficiency.


Proven Compactive Performance

Roller compactive force reaches target density in less number of roller passes. Provides higher centrifugal force and amplitude. Achieves uniform compaction throughout lift thickness.


Operator's station

Operator Comfort and Safety

Includes Sakai’s durable dual rubber isolation system between the drum and operator deck. Extremely quiet operator station with noise levels as low as 87 dB(A).
