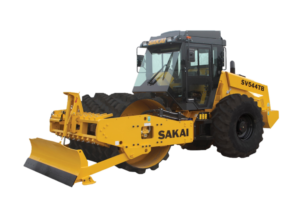

Sakai SV544TB
- Weight:
- 12.14 t
- Transport length:
- 6.365 m
- Transport width:
- 2.5 m
- Transport height:
- 3.105 m
SV544TB Sakai SV544TB Specifications & Technical Data (2026—2026)
Technical specs - SV544TB Sakai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.14 t
- Transport length
- 6.365 m
- Transport width
- 2.5 m
- Transport height
- 3.105 m
- Travel speed
- 10 km/h
- Frequency
- 33.3 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 2.13 m
- Turning radius outside
- 5.5 m
- Turning radius inside
- 3.4 m
- Centrifugal force
- 255 kN
- Model series
- SV544
- Engine manuf.
- Cummins
- Engine type
- QSF3.8
- Engine power
- 97 kW
- Displacement
- 3.8 l
- No. of cylinders
- 4
- Emission level
- Tier 4
More technical details, like: vibration, drive, amplitude, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
Yes
