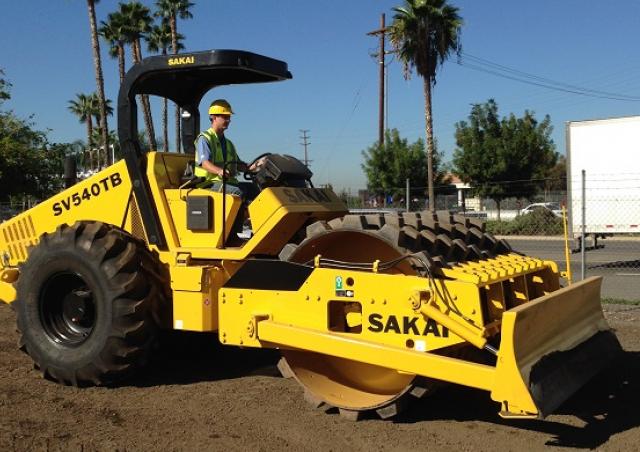

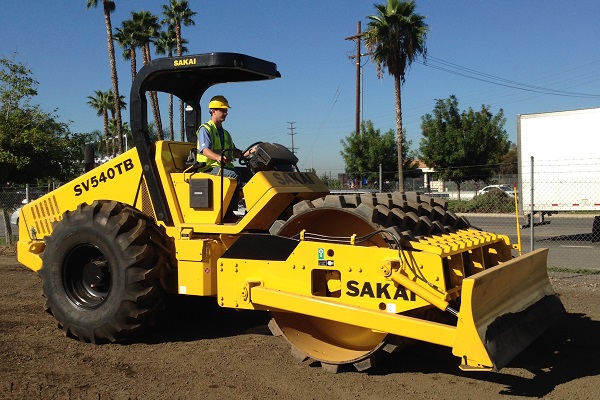

SV540TB Sakai SV540TB Specifications & Technical Data (2018—2026)

Weight: 11.77t – Transport length: 6.25m – Transport width: 2.8m – Transport height: 3.11m – Travel speed: 10km/h – Frequency: 33.3Hz

Rollers Single-drum Rollers Sakai SV540TB

Technical specs - SV540TB Sakai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.77 t
Transport length
6.25 m
Transport width
2.8 m
Transport height
3.11 m
Travel speed
10 km/h
Frequency
33.3 Hz
Roller width
2.13 m
Rollers Ø
1.6 m
Amplitude
1.94 mm
Turning radius outside
5.6 m
Centrifugal force
255 kN
Model series
SV540
Engine manuf.
Cummins
Engine type
QSB 4,5
Engine power
119 kW
Displacement
4.46 l
No. of cylinders
4
Emission level
Tier 4

More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
Yes
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Sakai SV540TB FAQ

When was the Sakai SV540TB manufactured?

The Sakai SV540TB was first produced in 2018.

How much does the Sakai SV540TB weigh?

The Sakai SV540TB weighs 11.77 tons.

What are the transport dimensions of the Sakai SV540TB single-drum roller?

The Sakai SV540TB has transport dimensions of 6.25 meters in length, 2.8 meters in width, and 3.11 meters in height.

What is the travel speed of the Sakai SV540TB single-drum roller?

The Sakai SV540TB has a travel speed of 10 km/h.

What is the turning radius of the Sakai SV540TB single-drum roller?

The Sakai SV540TB has an outside turning radius of 5.6 meters.

What are the compaction capabilities of the Sakai SV540TB single-drum roller?

The Sakai SV540TB single-drum roller operates at a frequency of 33.3 Hz, has an amplitude of 1.94 mm, and generates a centrifugal force of 255 kN.

What are the roller specifications of the Sakai SV540TB single-drum roller?

The Sakai SV540TB has a roller width of 2.13 meters and a roller diameter of 1.6 meters.

How much is a Sakai SV540TB Single-drum Roller (2018u20132025) worth?

The residual value of the Sakai SV540TB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sakai SV540TB overview

Engine and powertrain

Low Operating Costs

Sakai's new ECO Compaction Mode (ECM) reduces fuel consumption up to 20% while maintaining powerful performance. Durable, quality components such as the hydraulics, drum, and center-pin hitch assure longer life and lower maintenance costs. Sakai’s unique drum mounting system extends the life of the drum isolators.


Roller

Vibratory Single Drum Roller

The innovatively designed SV540 is applicable to medium to large soil compaction jobs. The SV540 includes new roller features and optimizes job profitability through efficiency.


Proven Compaction Performance

Roller compactive force reaches target density in fewer roller passes. Provides higher centrifugal force and amplitude. Achieves uniform compaction throughout lift thickness.


Standard Automatic Traction Control

Anti-slip control system for drum and tires ensures compaction while traveling forward or in reverse—even on jobs with soft ground, slopes or rough terrains.


Operator's station

Operator Comfort and Safety

Includes Sakai's durable dual rubber isolation system between the drum and the operator deck. Brake pedal comes standard for added safety. Large, comfortable cab with many standard features and your choice of options.
