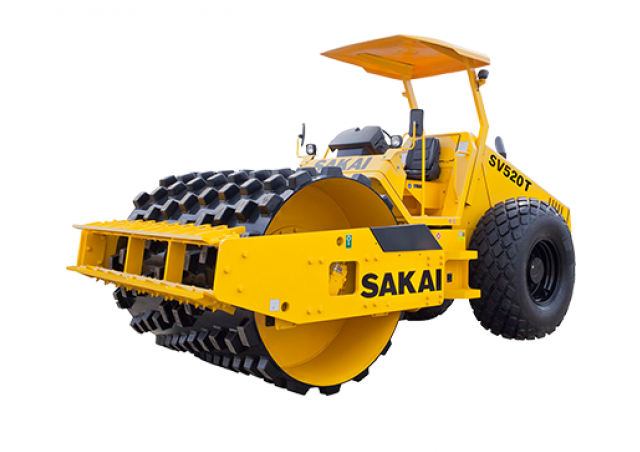

SV520T Sakai SV520T Specifications & Technical Data (2018—2026)
Technical specs - SV520T Sakai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.79 t
- Transport length
- 5.84 m
- Transport width
- 2.295 m
- Transport height
- 2.925 m
- Travel speed
- 10 km/h
- Frequency
- 33.3 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Amplitude
- 1.94 mm
- Turning radius outside
- 5.6 m
- Turning radius inside
- 3.5 m
- Centrifugal force
- 255 kN
- Model series
- SV520
- Engine manuf.
- Isuzu
- Engine type
- 4BG1T
- Engine power
- 83.3 kW
- Displacement
- 4.329 l
- Revolutions at max torque
- 2100 rpm
- No. of cylinders
- 4
- Emission level
- Tier 2
More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Sakai SV520T FAQ
How much does the Sakai SV520T weigh?
What are the transport dimensions of the Sakai SV520T single-drum roller?
What is the travel speed of the Sakai SV520T single-drum roller?
What are the turning radius specifications for the Sakai SV520T single-drum roller?
What are the compaction capabilities of the Sakai SV520T single-drum roller?
What are the roller specifications of the Sakai SV520T single-drum roller?
How much is a Sakai SV520T Single-drum Roller (2018u20132025) worth?
Machine inspection
Ask for inspection of your Sakai SV520T from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Sakai SV520T with similar Single-drum Rollers
Sakai SV520T
- Weight:
- 10.79 t
- Transport length:
- 5.84 m
- Transport width:
- 2.295 m
- Transport height:
- 2.925 m
Caterpillar CS54B
- Weight:
- 10.55 t
- Transport length:
- 5.85 m
- Transport width:
- 2.3 m
- Transport height:
- 3.11 m
Hamm 2422 DS
- Weight:
- 11.3 t
JCB VM 116 D
- Weight:
- 12.5 t
Lonking CDM512D
- Weight:
- 12 t
- Transport length:
- 5.98 m
- Transport width:
- 2.28 m
- Transport height:
- 3.22 m
