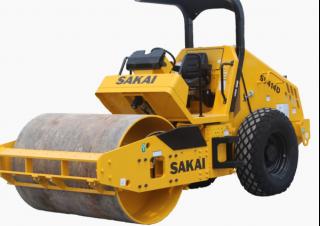

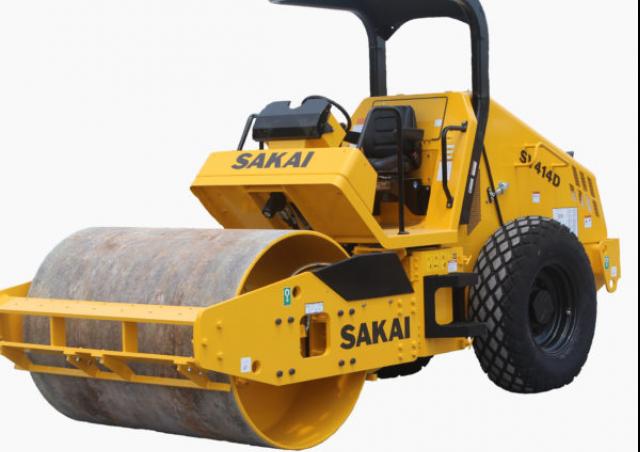

SV412D Sakai SV412D Specifications & Technical Data (2018—2026)

Weight: 7.54t – Transport length: 4.98m – Transport width: 1.92m – Transport height: 2.07m – Travel speed: 6km/h – Frequency: 38Hz

Rollers Single-drum Rollers Sakai SV412D

Technical specs - SV412D Sakai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.54 t
Transport length
4.98 m
Transport width
1.92 m
Transport height
2.07 m
Travel speed
6 km/h
Frequency
38 Hz
Roller width
1.7 m
Rollers Ø
1.3 m
Amplitude
1.4 mm
Turning radius outside
4.9 m
Centrifugal force
118 kN
Model series
SV412
Engine manuf.
Cummins
Engine type
QSB 3,3
Engine power
82 kW
Displacement
3.3 l
No. of cylinders
4
Emission level
Tier 4

More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Sakai SV412D FAQ

When was the Sakai SV412D manufactured?

The Sakai SV412D was first produced in 2018.

How much does the Sakai SV412D weigh?

The Sakai SV412D weighs 7.54 tons.

What are the transport dimensions of the Sakai SV412D single-drum roller?

The Sakai SV412D has a transport length of 4.98 meters, a transport width of 1.92 meters, and a transport height of 2.07 meters.

What is the travel speed of the Sakai SV412D single-drum roller?

The Sakai SV412D has a travel speed of 6 km/h.

What is the turning radius of the Sakai SV412D single-drum roller?

The Sakai SV412D has an outside turning radius of 4.9 meters.

What are the compaction capabilities of the Sakai SV412D single-drum roller?

The Sakai SV412D operates at a frequency of 38 Hz, has an amplitude of 1.4 mm, and generates a centrifugal force of 118 kN in its compaction system.

What are the roller specifications of the Sakai SV412D single-drum roller?

The Sakai SV412D has a roller width of 1.7 meters and a roller diameter of 1.3 meters.

How much is a Sakai SV412D Single-drum Roller (2018u20132025) worth?

The residual value of the Sakai SV412D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sakai SV412D overview

Sakai SV412D features overview

Improved Traction Control

High traction capability ensures compaction in both forward and reverse — even on jobs with soft ground, slopes or rough terrains. Manual traction control allows backing up steep slopes in reverse.


Roller

Proven Compactive Performance

Reaches target density in fewer roller passes. Provides higher centrifugal force and amplitude. Achieves uniform compaction throughout lift thickness.


Low Operating Costs

Durable, high quality components such as hydraulics, drum and center-pin hitch assure longer life and lower maintenance costs. Sakai’s unique drum mounting system extends the life of the drum isolators.


Operator's station

Operator Comfort and Safety

Patented drum vibration isolation system and floating deck keep the operator free from vibration. Brake pedal comes standard for added safety.
