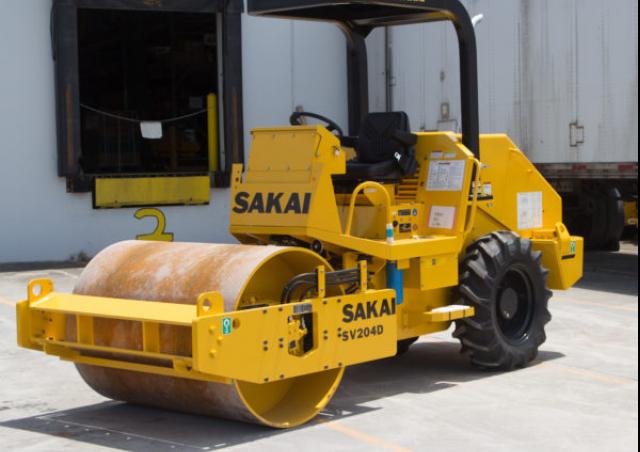

    Sakai SV204D Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 4.67t – Transport length: 4.21m – Transport width: 1.57m – Transport height: 1.78m – Travel speed : 7.4km/h – Frequency: 30Hz

    Technical specs - SV204D Sakai

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 4.67 t
    • Transport length 4.21 m
    • Transport width 1.57 m
    • Transport height 1.78 m
    • Travel speed 7.4 km/h
    • Frequency 30 Hz
    • Roller width 1.37 m
    • Rollers Ø 1 m
    • Amplitude 1.65 mm
    • Turning radius outside 4 m
    • Turning radius inside 2.5 m
    • Centrifugal force 74 kN
    • Engine manuf. Kubota
    • Engine type V3307CR-T-EF05
    • Engine power 54.6 kW
    • Displacement 3.33 l
    • No. of cylinders 4
    • Emission level Tier 4

    More technical details, like: vibration, drive, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin

    Special equipment

    • Diesel particulate filter
    • Sheep foot
    • Oscillation
    • Compression control
    • Aircondition
