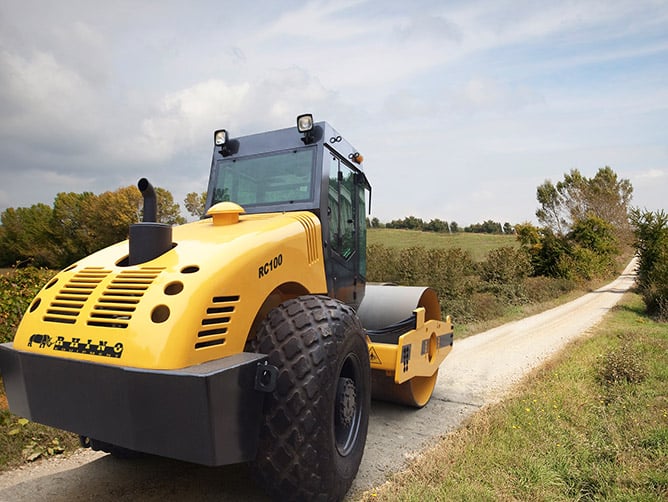

RC100 RHINO RC100 Specifications & Technical Data (2017—2026)

Weight: 10.2t – Transport length: 6m – Transport width: 2.25m – Transport height: 2.95m – Vibration: d – Travel speed: 10km/h

Rollers Single-drum Rollers RHINO RC100

Technical specs - RC100 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.2 t
Transport length
6 m
Transport width
2.25 m
Transport height
2.95 m
Vibration
d
Travel speed
10 km/h
Frequency
36 Hz
Roller width
2.1 m
Rollers Ø
1.35 m
Turning radius outside
6.5 m
Statical line load
24.2 kg/cm
Model series
RC

More technical details, like: drive, amplitude, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: drive, amplitude, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
Yes
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

RHINO RC100 FAQ

When did production of the RHINO RC100 start?

The RHINO RC100 was first produced in 2017.

How much does the RHINO RC100 weigh?

The RHINO RC100 weighs 10.2 tons.

What are the transport dimensions of the RHINO RC100 single-drum roller?

The RHINO RC100 has a transport length of 6 meters, a transport width of 2.25 meters, and a transport height of 2.95 meters.

What is the travel speed of the RHINO RC100 single-drum roller?

The RHINO RC100 has a travel speed of 10 km/h.

What is the turning radius of the RHINO RC100 single-drum roller?

The RHINO RC100 has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the RHINO RC100 single-drum roller?

The RHINO RC100 features a double vibration system, operates at a frequency of 36 Hz, and has a statical line load of 24.2 kg/cm.

What are the roller specifications of the RHINO RC100 single-drum roller?

The RHINO RC100 has a roller width of 2.1 meters and a roller diameter of 1.35 meters.

How much is a RHINO RC100 Single-drum Roller (2017u20132025) worth?

The residual value of the RHINO RC100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
