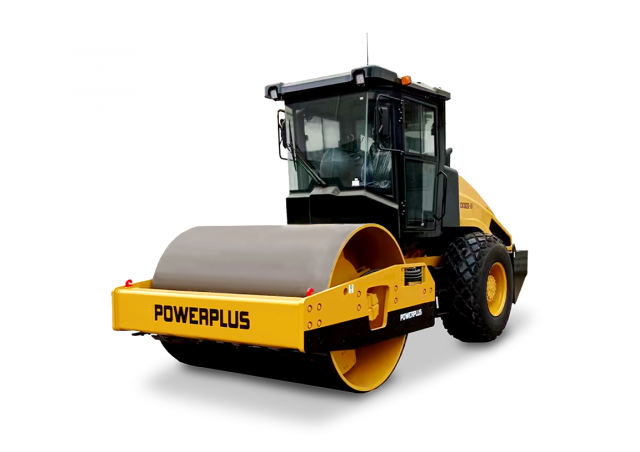

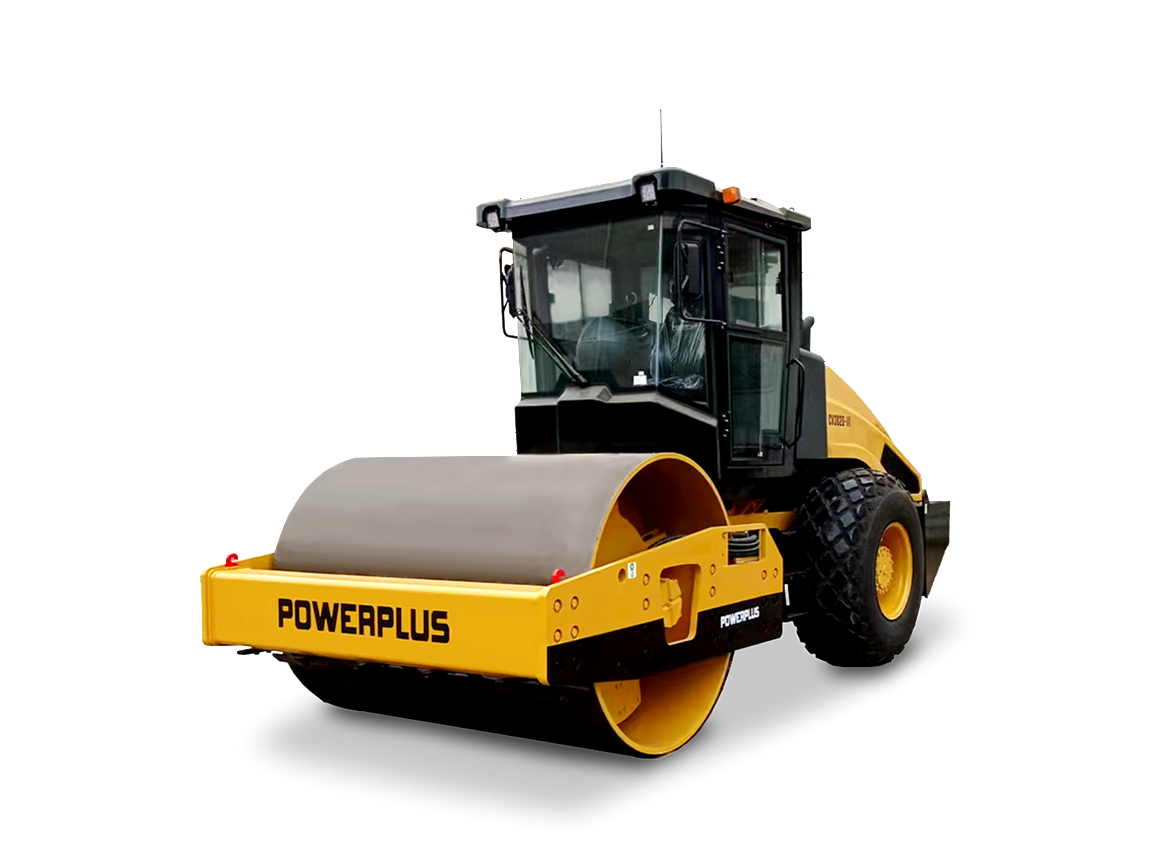

CV300D-III PowerPlus CV300D-III Specifications & Technical Data (2026—2026)

Weight: 10.6t – Transport length: 6.194m – Transport width: 2.25m – Transport height: 3.17m – Travel speed: 8.5km/h – Frequency: 30Hz

Rollers Single-drum Rollers PowerPlus CV300D-III

Technical specs - CV300D-III PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.6 t
Transport length
6.194 m
Transport width
2.25 m
Transport height
3.17 m
Travel speed
8.5 km/h
Frequency
30 Hz
Roller width
2.13 m
Rollers Ø
1.55 m
Centrifugal force
225 kN
Model series
D
Engine manuf.
Cummins
Engine type
6BT5.9-C150
Engine power
111.9 kW
Displacement
5.9 l
Emission level
Euro II

More technical details, like: vibration, drive, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
