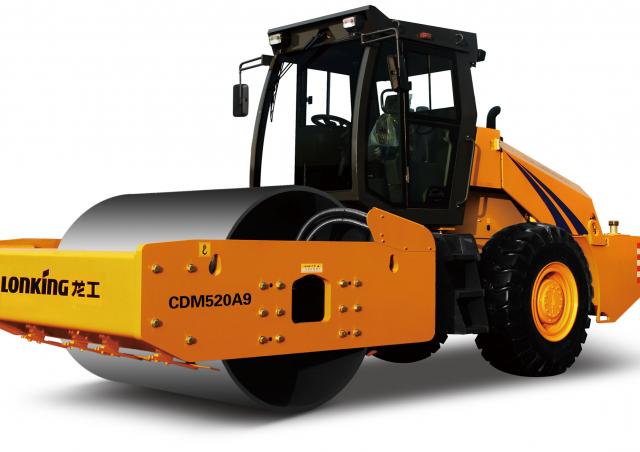

CDM520A9 Lonking CDM520A9 Specifications & Technical Data (2017—2026)
Technical specs - CDM520A9 Lonking
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20 t
- Transport length
- 6.32 m
- Transport width
- 2.39 m
- Transport height
- 3.18 m
- Travel speed
- 7.24 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 6.5 m
- Statical line load
- 49 kg/cm
- Model series
- CDM
- Engine manuf.
- Weichai
- Engine type
- WP6G175E22
- Engine power
- 129 kW
More technical details, like: vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
