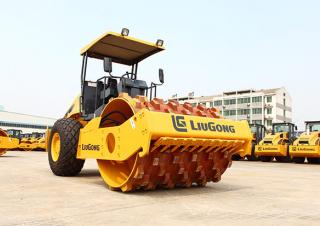

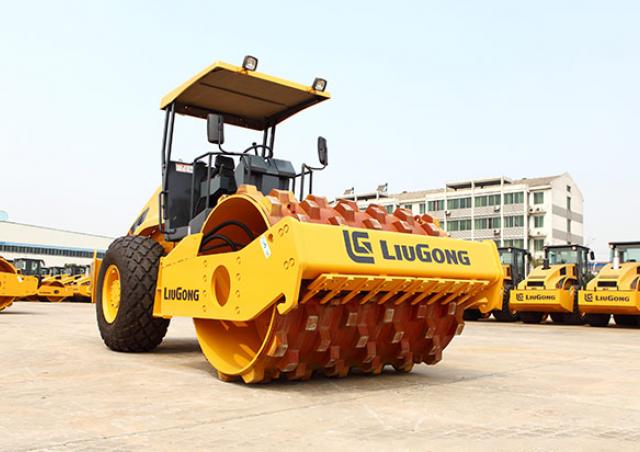

CLG610H Liugong CLG610H Specifications & Technical Data (2014—2019)

Weight: 10.1t – Transport length: 5.85m – Transport width: 2.28m – Transport height: 3.15m – Travel speed: 10.5km/h – Frequency: 33Hz

Rollers Single-drum Rollers Liugong CLG610H

Visit Liugong live at

Technical specs - CLG610H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.1 t
Transport length
5.85 m
Transport width
2.28 m
Transport height
3.15 m
Travel speed
10.5 km/h
Frequency
33 Hz
Roller width
2.13 m
Rollers Ø
1.5 m
Amplitude
1.8 mm
Turning radius outside
6.5 m
Turning radius inside
4.37 m
Statical line load
25.49 kg/cm
Centrifugal force
270 kN
Model series
CLG
Engine manuf.
Cummins
Engine type
4BTAA3.9-C125
Engine power
84 kW
Displacement
3.9 l
Revolutions at max torque
2200 rpm
Max. torque
480 Nm
No. of cylinders
4
Emission level
Tier 2/EU II

More technical details, like: vibration, drive, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Liugong CLG610H FAQ

When was the Liugong CLG610H manufactured?

The Liugong CLG610H was manufactured from 2014 to 2019.

How much does the Liugong CLG610H weigh?

The Liugong CLG610H weighs 10.1 tons.

What are the transport dimensions of the Liugong CLG610H single-drum roller?

The Liugong CLG610H has a transport length of 5.85 meters, a transport width of 2.28 meters, and a transport height of 3.15 meters.

What is the travel speed of the Liugong CLG610H single-drum roller?

The Liugong CLG610H has a travel speed of 10.5 km/h.

What are the outside and inside turning radii of the Liugong CLG610H single-drum roller?

The Liugong CLG610H has an outside turning radius of 6.5 meters and an inside turning radius of 4.37 meters.

What are the compaction capabilities of the Liugong CLG610H single-drum roller?

The Liugong CLG610H single-drum roller operates at a frequency of 33 Hz with an amplitude of 1.8 mm, generates a centrifugal force of 270 kN, and has a statical line load of 25.49 kg/cm.

What are the roller specifications of the Liugong CLG610H single-drum roller?

The Liugong CLG610H has a roller width of 2.13 meters and a roller diameter of 1.5 meters.

How much is a Liugong CLG610H Single-drum Roller (2014u20132019) worth?

The residual value of the Liugong CLG610H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
