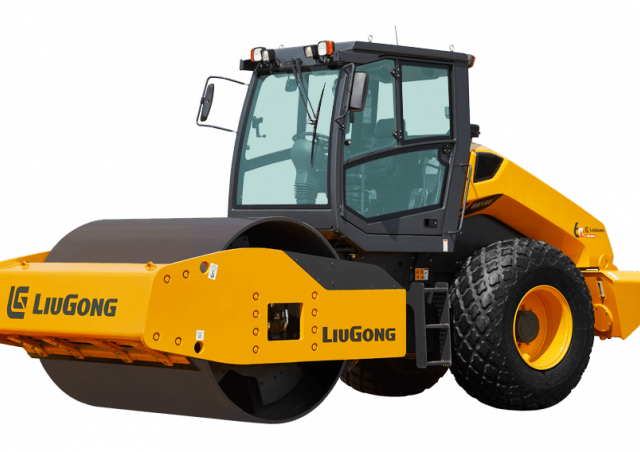

Liugong 6616E Specifications & Technical Data (2018-2026)

Technical specs - 6616E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.5 t

Transport length: 6 m

Transport width: 2.28 m

Transport height: 3.08 m

Travel speed: 12 km/h

Frequency: 33 Hz

Roller width: 2.13 m

Rollers Ø: 1.555 m

Amplitude: 2 mm

Turning radius outside: 6.5 m

Centrifugal force: 300 kN

Model series: E

Engine manuf.: Cummins

Engine type: 6BTAA5.9-C160

Engine power: 118 kW

Displacement: 5.9 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 6

Emission level: Tier 2/EU II

More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Liugong 6616E FAQ

When was the Liugong 6616E manufactured?

The Liugong 6616E was first produced in 2018.

How much does the Liugong 6616E weigh?

The Liugong 6616E weighs 15.5 tons.

What are the transport dimensions of the Liugong 6616E single-drum roller?

The Liugong 6616E has a transport length of 6 meters, a transport width of 2.28 meters, and a transport height of 3.08 meters.

What is the travel speed of the Liugong 6616E single-drum roller?

The Liugong 6616E has a travel speed of 12 km/h.

What is the outside turning radius of the Liugong 6616E single-drum roller?

The Liugong 6616E has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the Liugong 6616E single-drum roller?

The Liugong 6616E operates at a vibration frequency of 33 Hz, has an amplitude of 2 mm, and generates a centrifugal force of 300 kN in its compaction system.

What are the roller specifications of the Liugong 6616E single-drum roller?

The Liugong 6616E has a roller width of 2.13 meters and a roller diameter of 1.555 meters.

How much is a Liugong 6616E Single-drum Roller (2018u20132025) worth?

The residual value of the Liugong 6616E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
