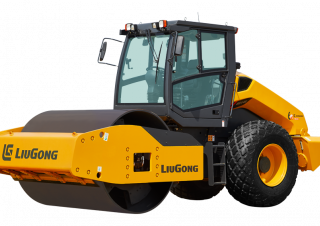

6614E Liugong 6614E Specifications & Technical Data (2018—2026)
Visit Liugong live at
.jpg){kind=logo}
Technical specs - 6614E Liugong
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 6 m
- Transport width
- 2.28 m
- Transport height
- 3.08 m
- Travel speed
- 12 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.555 m
- Amplitude
- 2 mm
- Turning radius outside
- 6.5 m
- Centrifugal force
- 300 kN
- Model series
- E
- Engine manuf.
- Cummins
- Engine type
- 6BTAA5.9-C160
- Engine power
- 118 kW
- Displacement
- 5.9 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 6
- Emission level
- Tier 2/EU II
More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
