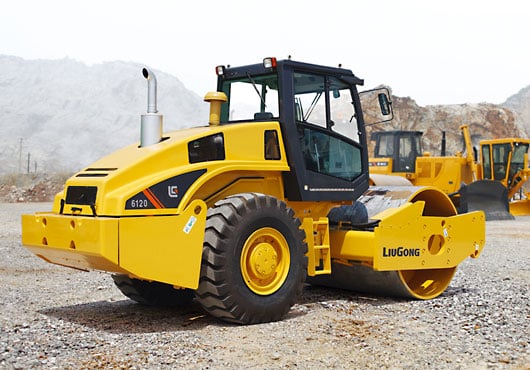

6120H Liugong 6120H Specifications & Technical Data (2013—2019)

Weight: 19.9t – Transport length: 6.28m – Transport width: 2.32m – Transport height: 3m – Travel speed: 12km/h – Frequency: 32Hz

Rollers Single-drum Rollers Liugong 6120H

Visit Liugong live at

Technical specs - 6120H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Transport length
6.28 m
Transport width
2.32 m
Transport height
3 m
Travel speed
12 km/h
Frequency
32 Hz
Roller width
2.1 m
Rollers Ø
1.6 m
Amplitude
2 mm
Turning radius outside
6.5 m
Turning radius inside
4.4 m
Statical line load
60.5 kg/cm
Engine manuf.
Cummins
Engine type
n/a
Engine power
127 kW
Revolutions at max torque
2200 rpm
Max. torque
685 Nm
No. of cylinders
6
Emission level
Tier 3/EU IIIA

More technical details, like: vibration, drive, centrifugal force, model series, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
Yes

Download datasheets (PDF)

Liugong 6120H FAQ

When was the Liugong 6120H manufactured?

The Liugong 6120H was manufactured from 2013 to 2019.

How much does the Liugong 6120H weigh?

The Liugong 6120H weighs 19.9 tons.

What are the transport dimensions of the Liugong 6120H single-drum roller?

The Liugong 6120H has a transport length of 6.28 meters, a transport width of 2.32 meters, and a transport height of 3 meters.

What is the travel speed of the Liugong 6120H single-drum roller?

The Liugong 6120H has a travel speed of 12 km/h.

What are the turning radius specifications for the Liugong 6120H single-drum roller?

The Liugong 6120H has an outside turning radius of 6.5 meters and an inside turning radius of 4.4 meters.

What are the compaction capabilities of the Liugong 6120H single-drum roller?

The Liugong 6120H operates at a vibration frequency of 32 Hz with an amplitude of 2 mm and has a statical line load of 60.5 kg/cm.

What are the roller specifications of the Liugong 6120H single-drum roller?

The Liugong 6120H has a roller width of 2.1 meters and a roller diameter of 1.6 meters.

How much is a Liugong 6120H Single-drum Roller (2013u20132019) worth?

The residual value of the Liugong 6120H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
