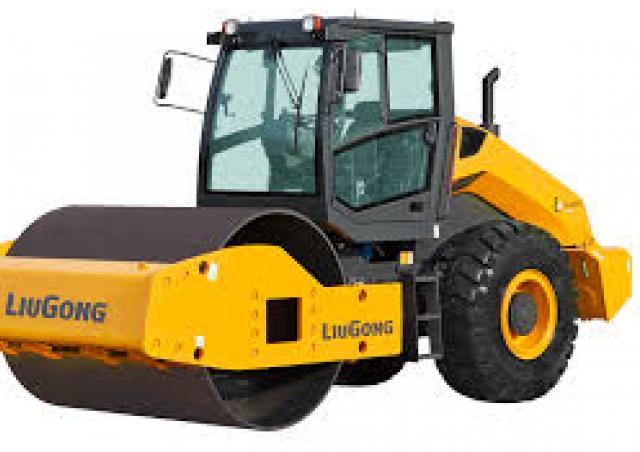

Liugong 6116E Specifications & Technical Data (2017-2026)

Technical specs - 6116E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Transport length: 6 m

Transport width: 2.28 m

Transport height: 3.05 m

Travel speed: 11 km/h

Frequency: 30 Hz

Roller width: 2.13 m

Rollers Ø: 1.555 m

Amplitude: 2 mm

Turning radius outside: 6.5 m

Centrifugal force: 300 kN

Model series: E

More technical details, like: vibration, drive, turning radius inside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, turning radius inside, statical line load, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Liugong 6116E FAQ

When was the Liugong 6116E manufactured?

The Liugong 6116E was first produced in 2017.

How much does the Liugong 6116E weigh?

The Liugong 6116E weighs 16 tons.

What are the transport dimensions of the Liugong 6116E single-drum roller?

The Liugong 6116E has transport dimensions of 6 meters in length, 2.28 meters in width, and 3.05 meters in height.

What is the travel speed of the Liugong 6116E single-drum roller?

The Liugong 6116E has a travel speed of 11 km/h.

What is the turning radius of the Liugong 6116E single-drum roller?

The Liugong 6116E has an outside turning radius of 6.5 meters.

What are the compaction capabilities of the Liugong 6116E single-drum roller?

The Liugong 6116E single-drum roller operates at a frequency of 30 Hz, has an amplitude of 2 mm, and generates a centrifugal force of 300 kN.

What are the roller specifications of the Liugong 6116E single-drum roller?

The Liugong 6116E has a roller width of 2.13 meters and a roller diameter of 1.555 meters.

How much is a Liugong 6116E Single-drum Roller (2017u20132025) worth?

The residual value of the Liugong 6116E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
